One of the biggest challenges when using positive displacement pumps are pressure variations on the discharge side. Depending on the operating principle, these effects are more or less significant, but always present. This often poses a challenge for end-users. These pulsations can not only be harmful to the pumped medium but also place a particularly heavy load on the installed equipment.
Depending on the intensity, this can lead to knocking noises or vibrations of pipes and hoses. These pulsations are particularly detrimental to sensors further down the line, such as pressure gauges or flowmeters. It also complicates repeatable dosing and filling processes.
Tapflo DT Active Pulsation Damper
With the DT pulsation damper, we can offer suitable solutions for the problems mentioned above. These dampers, optimized for use with Tapflo air-operated diaphragm pumps, are the most effective and simplest way to eliminate pressure variations on the pump’s discharge side.
Thanks to the “in-line” design, the liquid can be pumped without additional pressure losses, shear impacts, or product degradation. This is a decisive advantage, especially for shear-sensitive liquids, viscous liquids, or liquids with a high concentration of solids. It should also be noted that smaller pressure fluctuations reduce pressure losses in the pipeline, thereby increasing pumping efficiency.

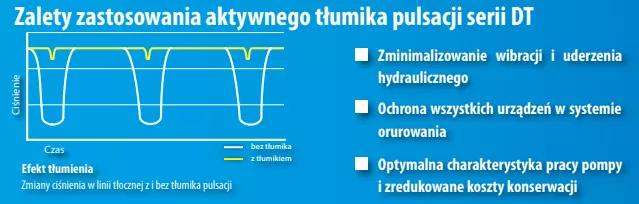

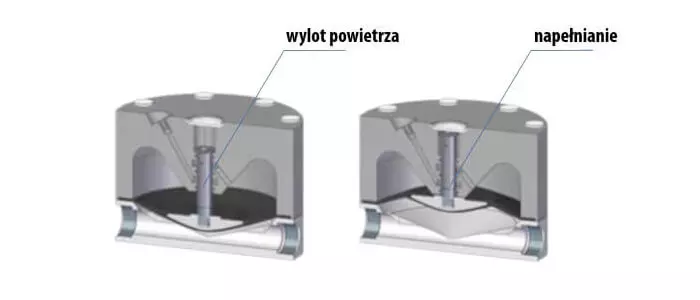

“Active pulsation damper” – the Tapflo pulsation damper actively works with the pulsating flow of the pumped liquid. By supplying compressed air, which is taken from the pump’s air inlet, the pulsation damper maintains the same pressure as the pump. If the pressure in the pipeline drops between pump strokes, the damper provides additional pressure for the pumped liquid. This reduces or prevents pulsation. Furthermore, the pulsation damper automatically adjusts to changing pumping conditions or pumped media.
Materials and Applications
Maintenance-free pulsation dampers are manufactured by Tapflo from PE and PTFE plastics, as well as stainless steel, polished stainless steel, and aluminum. High-performance diaphragms made of PTFE, EPDM, NBR, and others are characterized by a particularly long service life due to their layered construction and integrated metal core. For particularly demanding applications, the pulsation damper can also be equipped with a double diaphragm system with a barrier fluid chamber for monitoring the diaphragm condition. Pulsation dampers are also available in sanitary and high-pressure versions. Compliance with the requirements of ATEX Directive 2014/34/EU complements the range of applications for the pulsation damper and extends it to almost all industrial application areas.
Food, Pharmaceuticals, and Cosmetics
Tapflo pulsation dampers from the hygienic series are used in many areas of the food, cosmetic, and pharmaceutical industries. Naturally, we comply with all required European and international standards, such as EN 10204, FDA, EC 1935/2004, EC10/2011, and USP VI.
The dead-space-free design of our pulsation damper is easy to clean in CIP and SIP systems and self-draining when installed vertically. This leaves no room for product residue and bacterial growth. The damper can be equipped with a wide range of sanitary and aseptic connections, such as tri-clamp, DIN 11851, or DIN 11864.
Chemicals, Surface Technology, Wastewater Treatment, Ceramics
Aggressive chemicals, thick pastes, or sensitive filtration processes. Safe pumping, reduced splashing, constant flow, and coating are just some of the arguments for using a Tapflo pulsation damper.
Paint, Printing, and Packaging Industries
Constant and reliable supply of paints, varnishes, coating agents, and pre-treatment in all operating conditions can be simplified and optimized. Last but not least, this often speeds up the process, saving time and costs.
Applicable to all positive displacement pumps!
Tapflo pulsation dampers are not only used with our own diaphragm pumps; they can also be installed in existing systems with pumps from other suppliers.
The pulsation damper can also be used with electric pumps with strong pulsations, such as peristaltic pumps, piston pumps, and all other pulsating pumps.

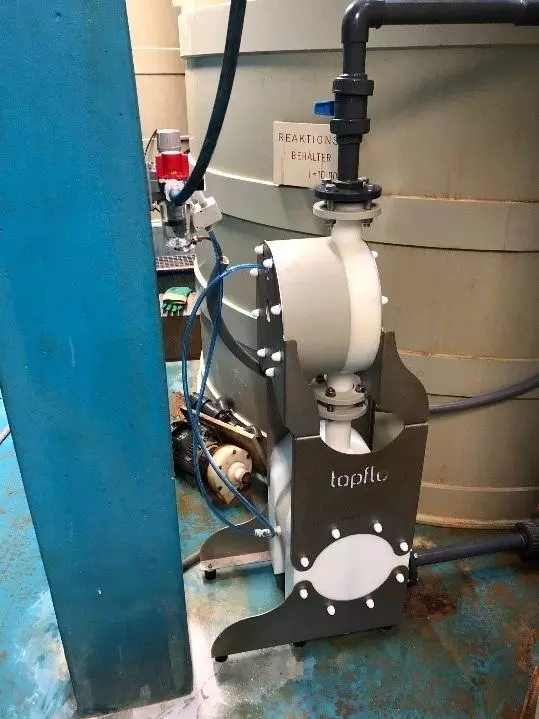

“Plug and play”
Particularly practical and space-saving are the integrated pulsation dampers from the “top-mounted” and TK series. In these cases, the pulsation damper is already mounted on the pump.
