Hygienic check valves

Hygienic check valves Cipriani Harrison series 65

Hygienic check valves

Cipriani Harrison hygienic check valves are designed for use in process installations to prevent backflow. Made of AISI 316L stainless steel, they are the perfect solution for applications requiring the highest standards of hygiene.

The CHV hygienic check valve has been designed with strict hygienic criteria in mind and is available in various versions to suit the application. It is also available with a wide range of connections: threaded, welded or clamp.

Tapflo sanitary check valves are widely used in the pharmaceutical, food, dairy, wine, brewing, cosmetics, chemical and other industries.

Typical applications: pharmaceutical, food, dairy, wine, beer, beverage, cosmetics, chemical industries, etc.

Sizes: DN15 – DN100
Max. line pressure: 10 bar
Max. temperature: 135 °C
Pump materialss: AISI 316L or AISI 304L
Certificates: 3-A

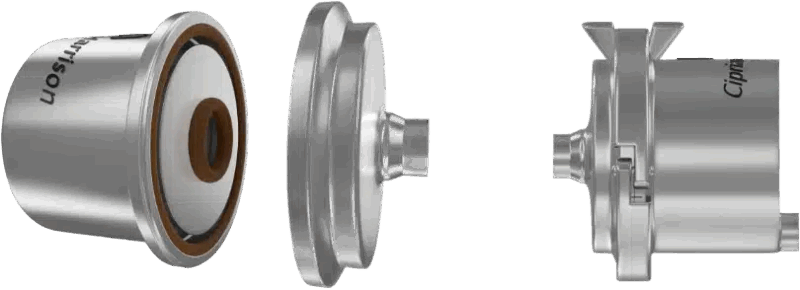

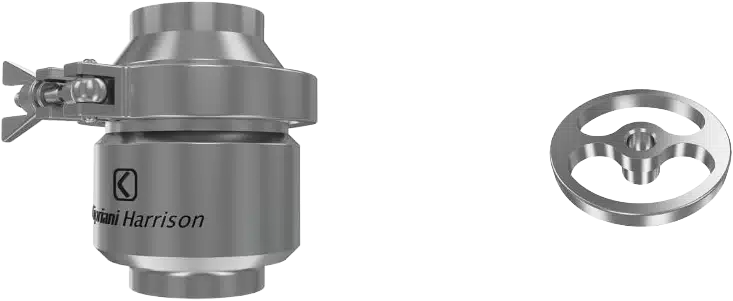

Hygienic design – for Ra ≤ 0.3 µm, ideal for food, pharmaceutical and cosmetic applications
FDA-approved seals – highest level of hygiene
Made of AISI 316L steel – high resistance to corrosion and chemicals
self-draining design – no product residue accumulation
available in a version for low-pressure applications
various connection types – sanitary clamp, butt weld, I-Line or others on request
compact and durable design – long service life and reliability

BROCHURE

Tapflo sanitary check valves are widely used in the pharmaceutical, food, dairy, wine, brewing, cosmetics, chemical and other industries.

Typical applications: pharmaceutical, food, dairy, wine, beer, beverage, cosmetics, chemical industries, etc.

Techical data

Max. discharge pressure:	10 bar
Temperature range:	up to 135 °C
Available sizes:	DN15, DN25, DN40 DN50, DN65, DN80, DN100
Available connections:	sanitary clamp, butt weld, I-Line or others on request
Pump materialss:	Steel components in contact with the medium: AISI 316L or AISI 304L
Seals (FDA compliant):
Valve seat:	PTFE, Silicone
O-ring:	PTFE, Silicone
Optional:	Viton or EPDM

Operation principle

A hygienic check valve, also known as a one-way valve, opens when the pressure below the valve plug exceeds the pressure above the valve plug. Opening is achieved by spring force or self-weight.

Check valves types

Higienic check valves Cipriani Harrison seria 64

Hygienic check valves, series 64

CHV check valves, series 64, are made of forged material. The valve body consists of two parts connected by a standard clamp and sealed with a standard gasket.

Higienic check valves Cipriani Harrison seria 65

Hygienic check valves, series 65

CHV check valves, series 65, have been designed to meet strict hygienic requirements. They are made of high-quality forged material. These valves operate on the principle of self-weight and do not contain springs, making them suitable for use in low-pressure systems. The Series 65 check valve is designed for horizontal installation.

Construction

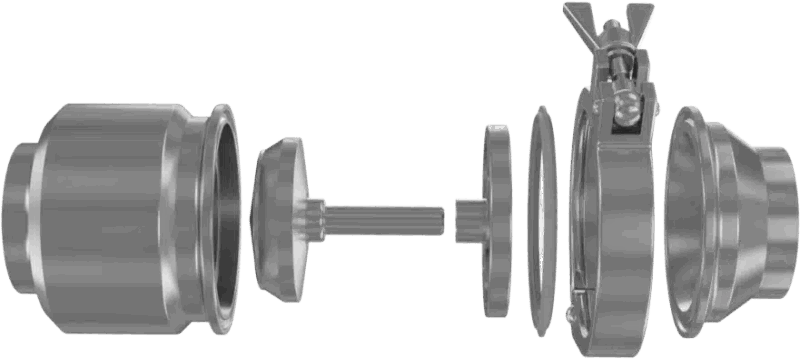

The hygienic check valve is made of high-quality forged steel, ensuring a smooth, pore-free surface, precisely machined for greater dimensional stability.

All seats and seals are made of FDA-approved materials.

The self-draining design of the lower valve body prevents product residue build-up and product flushing.
The special design of the poppet ensures resistance to water hammer, minimises flow resistance and guides the valve poppet, ensuring better repeatability.

Series 65 check valves are designed for low-pressure applications where the product pipeline has low pressure but requires unidirectional flow.
The Series 65 valve is designed for horizontal installation. The valve body has been designed and precision machined to ensure no residue build-up and product flow through the pipeline.

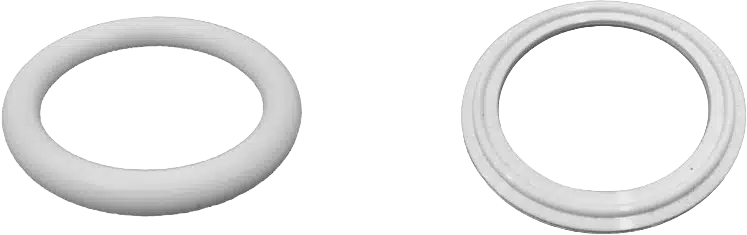

FDA seals:

Various sealing options are available, tailored to different thermal conditions and chemical resistance, which increases the service life of the seals.
We also offer a special PTFE seal, tailored to more aggressive media.

Connections and standards

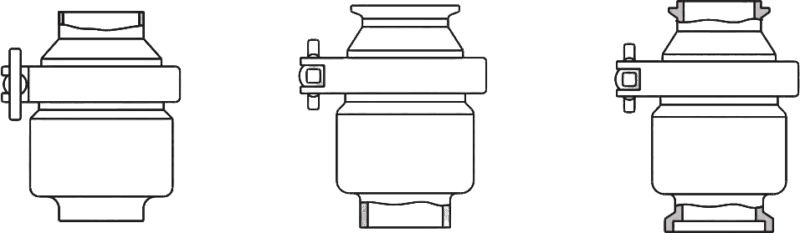

Tapflo check valves are available with a wide range of connections, such as welded connections, sanitary clamp connections, union or threaded connections, I-Line connections or flange connections.
These valves are available in various international standards, such as ISO, DIN, RJT, IDF, etc.

Techical data
Operation principle
Check valves types
Construction

Max. discharge pressure:	10 bar
Temperature range:	up to 135 °C
Available sizes:	DN15, DN25, DN40 DN50, DN65, DN80, DN100
Available connections:	sanitary clamp, butt weld, I-Line or others on request
Pump materialss:	Steel components in contact with the medium: AISI 316L or AISI 304L
Seals (FDA compliant):
Valve seat:	PTFE, Silicone
O-ring:	PTFE, Silicone
Optional:	Viton or EPDM
