MTG rubber hoses – Drinks/SPL/10

SPEAK TO US TODAY +353 1 2011911

Application: Food quality hose designed for conveying high quality alcoholic beverages (such as beer, cider, wine) and soft drinks. Suction and delivery hose.

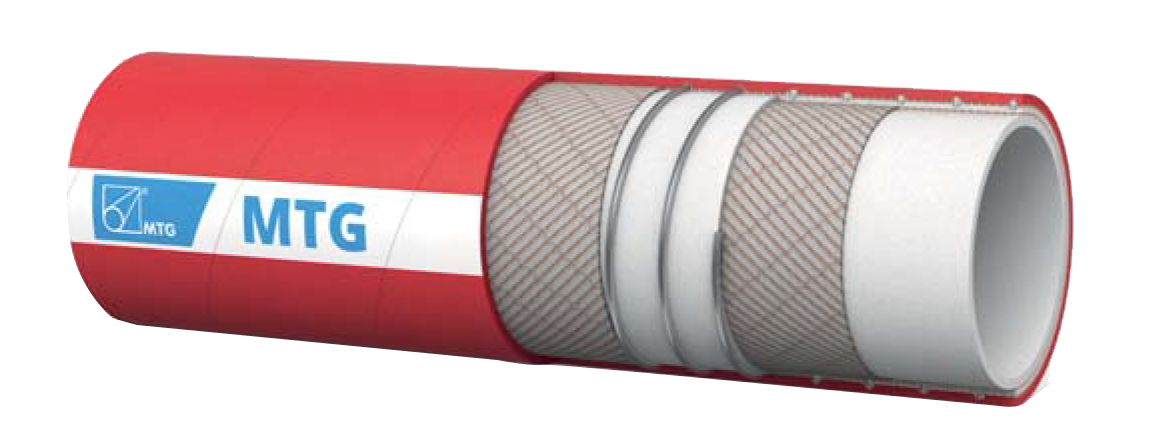

Construction: Tube: BIIR rubber (code 90FDA), light colour, food quality, odourless, tasteless, mirror smooth. Complying with the regulations FDA, D.M. 21/03/73 and following amendments.
Reinforcement: plies of synthetic cord, embedded steel helix wire.
Cover: EPDM based rubber, red colour, resistant to abrasion and ozone, weatherproof, smooth (cloth finish).
Safety factor: ≥ 3 times working pressure.
Temperature range: From -40°C to +120°C.
Sterilization: Sterilization up to +130°C for max. 30 minutes. For longer sterilizations you should use the version with vulcanized fittings at the ends.

The inner tube is free from plasticizers, phthalates and animal derived ingredients, thus reducing the risk of bacterial growth and contamination of the product conveyed.
The composition of the hose cover ensures excellent resistance to aging.
The hose complies with the Regulations EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to the current European Regulation EC 1907/2006 (REACH).

BROCHURE

Technical data

Inner Diameter mm	Outer diameter mm	Wall thickness mm	Working pressure BAR	Burst pressure BAR	Min. bending radius mm	Vacuum BAR	Approx. weight kg/m	Max. length m
19	31	6	10	30	80	-0.9	0.60	40
25	37	6	10	30	120	-0.9	0.74	40
25	38	6.5	10	30	120	-0.9	0.82	40
32	44	6	10	30	150	-0.9	0.90	40
32	45	6.5	10	30	150	-0.9	1.00	40
38	51	6.5	10	30	200	-0.9	1.25	40
38	52	7	10	30	200	-0.9	1.38	40
50	66	8	10	30	250	-0.9	1.95	40
51	66	7.5	10	30	250	-0.9	1.80	40
63.5	79.5	8	10	30	360	-0.9	2.60	40
63.5	80.5	8.5	10	30	360	-0.9	2.70	40
75	91	8	10	30	450	-0.9	3.18	40
76	92	8	10	30	450	-0.9	3.23	40
100	116	8	10	30	600	-0.9	3.90	40
100	118	9	10	30	600	-0.9	4.60	40
102	118	8	10	30	600	-0.9	4.00	40
102	120	9	10	30	600	-0.9	4.70	40

Technical data

Inner Diameter mm	Outer diameter mm	Wall thickness mm	Working pressure BAR	Burst pressure BAR	Min. bending radius mm	Vacuum BAR	Approx. weight kg/m	Max. length m
19	31	6	10	30	80	-0.9	0.60	40
25	37	6	10	30	120	-0.9	0.74	40
25	38	6.5	10	30	120	-0.9	0.82	40
32	44	6	10	30	150	-0.9	0.90	40
32	45	6.5	10	30	150	-0.9	1.00	40
38	51	6.5	10	30	200	-0.9	1.25	40
38	52	7	10	30	200	-0.9	1.38	40
50	66	8	10	30	250	-0.9	1.95	40
51	66	7.5	10	30	250	-0.9	1.80	40
63.5	79.5	8	10	30	360	-0.9	2.60	40
63.5	80.5	8.5	10	30	360	-0.9	2.70	40
75	91	8	10	30	450	-0.9	3.18	40
76	92	8	10	30	450	-0.9	3.23	40
100	116	8	10	30	600	-0.9	3.90	40
100	118	9	10	30	600	-0.9	4.60	40
102	118	8	10	30	600	-0.9	4.00	40
102	120	9	10	30	600	-0.9	4.70	40
