MTG rubber hoses – Mastermilk/SD

SPEAK TO US TODAY +353 1 2011911

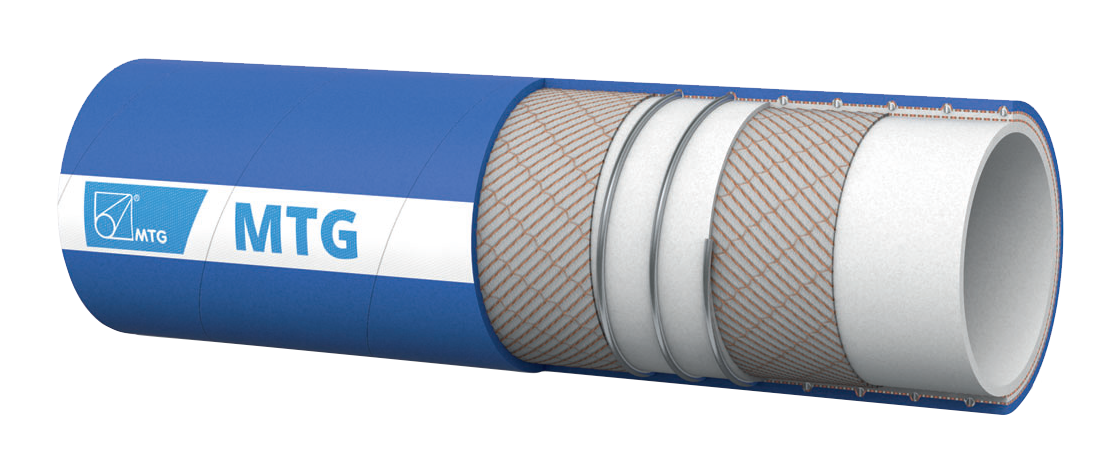

Application: Rubber hose suitable for conveying fatty and fat-free foodstuff. Perfect solution for use in dairy equipments and unloading platforms requiring flexibility and resistance to light and medium-duty applications. Suction and delivery hose.
Tube: NBR rubber (code NAB90), light colour, food quality, odourless and tasteless, mirror-smooth. Compliance: 3-A Sanitary Standards n.18-03-Class II, FDA Standards. Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments. RAL registration for food quality.
Reinforcement: Plies of synthetic cord. Embedded steel helix wire.
Cover: Synthetic rubber, blue colour, resistant to abrasion, weather and ageing, smooth, cloth finish.
Safety factor: ≥ 3 times working pressure.
Temperature range: From -20°C to +90°C depending on the product conveyed and on use

Especially suitable for applications with a small bending radius, with the advantage of providing a handy and highly flexible structure.
The tube is resistant to chemical cleaning products and to the most common disinfection processes used in the food industry.
The cover provides a good resistance to ageing and short contact with animal and vegetable fats.
Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
Non plasticized hose.

BROCHURE

Technical data

Inner Diameter mm	Outer diameter mm	Wall thickness mm	Working pressure BAR	Burst pressure BAR	Vacuum BAR	Min. bending radius mm	Approx. weight kg/m	Max. length m
19	30	5.5	10	30	-0.9	50	0.60	40
25	36	5.5	10	30	-0.9	75	0.74	40
32	43	5.5	10	30	-0.9	80	0.90	40
38	50	6.0	10	30	-0.9	110	1.20	40
40	52	6.0	10	30	-0.9	120	1.25	40
45	57	6.0	10	30	-0.9	130	1.50	40
50	62	6.0	10	30	-0.9	150	1.55	40
65	78	6.5	10	30	-0.9	190	2.20	40
75	89	7.0	10	30	-0.9	220	2.55	40
100	115	7.5	10	30	-0.9	500	4.25	40

Technical data

Inner Diameter mm	Outer diameter mm	Wall thickness mm	Working pressure BAR	Burst pressure BAR	Vacuum BAR	Min. bending radius mm	Approx. weight kg/m	Max. length m
19	30	5.5	10	30	-0.9	50	0.60	40
25	36	5.5	10	30	-0.9	75	0.74	40
32	43	5.5	10	30	-0.9	80	0.90	40
38	50	6.0	10	30	-0.9	110	1.20	40
40	52	6.0	10	30	-0.9	120	1.25	40
45	57	6.0	10	30	-0.9	130	1.50	40
50	62	6.0	10	30	-0.9	150	1.55	40
65	78	6.5	10	30	-0.9	190	2.20	40
75	89	7.0	10	30	-0.9	220	2.55	40
100	115	7.5	10	30	-0.9	500	4.25	40
