Our customer in Hungary, a manufacturer of industrial equipment, was faced with the need to install a new palm oil pumping system at one of its customers’ sites.
Customer’s requirements:
The key requirements included ensuring stable operation at a low capacity of 2 m³/h, a pressure of 2 bar and a medium viscosity of 50-100 cP. An additional challenge was the working temperature of 40-50 °C, which required the use of reliable, precise and durable solutions, resistant to the specific properties of the medium. The customer expected a fast order fulfillment and the provision of detailed technical data in order to integrate the pumps into the overall system.
Our solution:

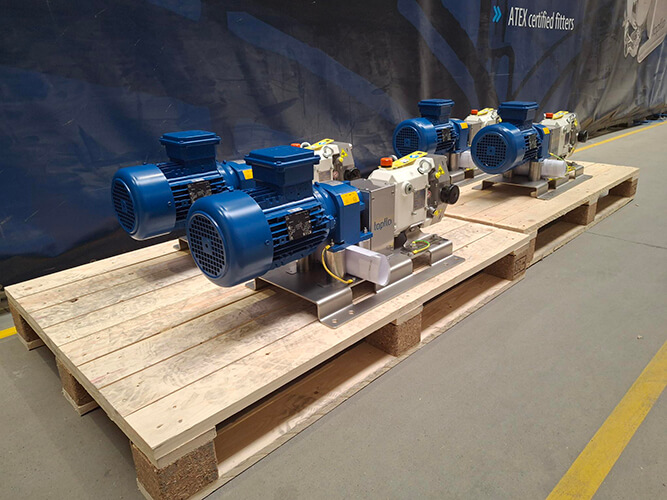

We proposed four LPX-25 lobe pumps, which perfectly meet the specified requirements for capacity, pressure and viscosity. These pumps are characterized by high dosing precision, reliability in working with vegetable oils and a durable design adapted to work in elevated temperatures.
Fast facts
|
Chosen pumps: with SiC/SiC/FKM mechanical seal, DIN11851 connections, driven by 1.1 kW 490 RPM gearmotor |
