Gear pumps with gland packing packing – TGGP series

BROCHURE MANUAL

Gear pumps with gland packing packing – TGGP series

SPEAK TO US TODAY +27 31 701 52 55

SPX Johnson TGGP are rope-sealed internal gear pumps designed for pumping medium or high viscosity and high temperature media. This combination of robust design, clearance flexibility, unique interdental space shape and a wide range of material designs and additional options, such as a heating jacket, relief valves or electric heating. They are characterized by a simple operating principle and smooth flow with low pulsation, also with reversed flow direction.

SPX Johnson TGGP gear pumps are used in industries such as: food, chemical, paint, paper, and construction.

High performance – for medium or high viscosity liquids
Well-thought-out design – no leaks
Easy maintenance, extended service life
Various connection options – compliant with EN or ANSI.
Design intended for ATEX zones

Max. capacity: 130 m³/h
Max. discharge pressure: 16 bar
Max. temperature: 300 °C
Medium viscosity: 80 000 mPa·s
Pump materialss: grey cast iron
Impeller type: gear, made of cast iron or stainless steel
Certificates: ATEX, FDA, EC 1935/2004

BROCHURE MANUAL

SPX Johnson TGGP gear pumps are used in industries such as: food, chemical, paint, paper, and construction.

Technical data

Pump capacity:	130 m³/h
Max. rotational speed:	1450 rpm
Max. discharge pressure:	16 bar
Temperature:	300 °C
Viscosity:	80 000 mPa·s
Max size of solids:	225 µm
Impeller type:	gear, made of cast iron, nitrided ductile iron or stainless steel
Pump materialss:	grey cast iron
Mechanical seal:	Sealing rings made of graphite-reinforced PTFE, white aramid or graphite fibers. Optional: special design.

Typical applications

Industry	Application example
Petrochemical Industry	Pure asphalt or asphalt mixtures, diesel oil, crude oil, lubricating oil, base oil, greases.
Chemical and Dye Industry	Sodium silicate, acids, plastics, mixed chemical substances, isocyanates, polyols.
Pulp and Paper Industry	Acid, soap, lye, black liquor, kaolin, lime, latex, sludge.
Food Industry	Chocolate, cocoa butter, fillers, sugar, vegetable fats and oils, molasses, animal feed.

Product features

The TopGear (TG) series combines robust construction with small or large clearances and a unique tooth profile on the active gear. TG GP series pumps are packing-sealed internal gear pumps. Their main advantages are the combination of robust construction, flexibility in clearance selection, unique inter-tooth space shape, and a wide range of material designs and additional options, such as a heating jacket, relief valves, or electric heating.

TG GP series pumps are characterized by a simple operating principle in which the liquid flows through the pump evenly with minimal pulsation. These pumps can also have a reversed flow direction. Most TG G series models are designed to operate at the normal rotational speed of a 50 Hz electric motor, allowing for direct drive.

Pumps in this series are used for pumping high-volume media in general applications. They handle medium or high viscosity media and high-temperature liquids perfectly. TopGear series pumps are self-priming and are used in many industries, such as food, chemical, paint, paper, and construction.

High efficiency – the design of this pump series features axial rotor locking, adjustable clearances, and a balanced hydraulic design. The TG GP series is characterized by high permissible torque and a single clearance class, enabling very good overall efficiency.
10 sizes – a range of models with a maximum capacity of up to 130 m³/h and a pressure of 16 bar, allowing the pump to be adapted to specific customer requirements.
Better priming – oversized ports for better performance, located above the pump centerline. This translates to lower required NPSH (Net Positive Suction Head).
Designed for medium or high viscosity media – undisturbed flow thanks to the optimized tooth profile on the active gear.
No leaks caused by thermal expansion – reliable sealing and pinion shaft with cover.
Well-thought-out design – based on two ball bearings with adjustable axial clearance. Pumps in this series can withstand higher permissible axial forces.
Easy maintenance – possibility of disassembly and access to the pump from both the front and the rear. Simple design and shorter service downtime.
Multiple material options – various designs of bearings and hydraulic parts are available.
Extended service life – compact rotor, robust shafts, optimal bearing design, option of hard metal bearings, vented seal area thanks to a bleed channel.
Various connection options – compliant with EN or ANSI.
Explosion-proof design – compliant with ATEX Directive, category II 2G.

Operation principle

Operating principle of SPX Johnson TopGear gear pumps

The rotor and pinion mesh together as they rotate. This creates sealed chambers with variable volume, resulting in a vacuum that forces the medium to flow into these spaces. The liquid is transported in the chambers from the suction side to the discharge side. The spaces are separated by an element that prevents the liquid from returning to the suction side. The medium is pumped to the discharge side as a result of the decreasing volume of the inter-tooth spaces.

Modular design

	Pump housing with integrated feet and line connections The pump housing can remain installed in the piping system during inspection and repair of the rotors and shaft seal.
	Front access module The entire front (gear, cover, and gear stub) can be removed for easy internal inspection and repair.
	Rear access module The rotor with shaft, intermediate housing with rotor bearing, shaft seal, and bearing bracket can be removed for easy inspection, repair, and shaft seal replacement.
	Top-mounted relief valve The pre-assembled and pre-set overpressure relief valve can be removed for inspection, repair, and if the direction of rotation or pressure needs to be changed.

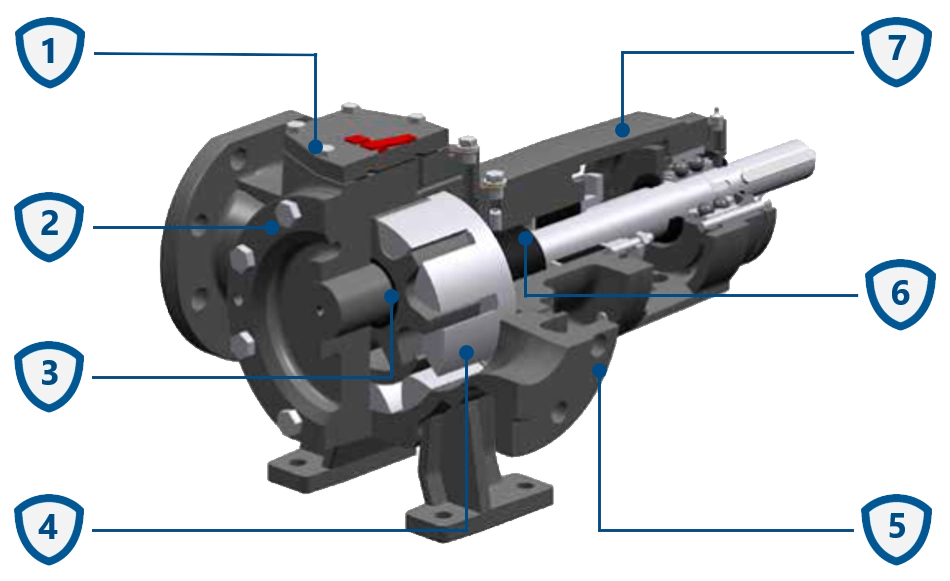

Construction

1. Pump Casing

horizontal line connections above the center line,
several PN flanged connections available,
possibility of connecting large diameter pipes,
pressure gauge connections on both flanges,
plug for filling, venting and drainage,
integrated feet under the pump casing,
free thermal expansion towards the rear,
lower pipeline velocity and pressure losses,
good NPSH properties,
liquid remains in the pump until the next start,
facilitated maintenance.

Front Access Module

Idler pin cover in SPX Johnson TGG gear pumps.

2. Idler Pin Cover

large recesses at the inlet and outlet,
fixed idler pin thanks to press fit,
several pin material options,
axial liquid inlet relative to the gears improves NPSHr properties,
possibility of selecting appropriate idler pin materials for a given application.

Idler gear of SPX Johnson TGG gear pumps.

3. Idler Gear with Bushing

unique tooth profile,
large diameter of the idler pin and bushing,
possibility of using low and high viscosity media,
possibility of hydrodynamic lubrication by the pumped liquid to reduce wear of the bushing and idler pin,
possibility of selecting appropriate materials needed for a given application.

Rear Access Module

Impeller and shaft of the SPX Johnson TGG gear pump.

4. Pump Impeller and Shaft

unique tooth profile and strong rotor teeth,
durable rotor and shaft mounting by press fit,
several material options,
possibility of using high viscosity liquids,
high torque and radial force permissible even at high temperature and with standard clearances,
easy installation of shaft seals without the risk of damaging elastomers,
V-belt drive possible,
possibility of selecting appropriate materials needed for a given application.

Intermediate casing of the SPX Johnson TGG gear pump.

5. Intermediate Casing

rotor radial bearing outside the pumped medium,
easy maintenance and repair,
single mechanical shaft seal,
grease-lubricated radial roller bearing,
leakage collection between the mechanical seal and the roller bearing.

Packing seal of SPX Johnson TGGP gear pumps.

6. Gland Packing without Spacer Ring

several sealing ring material options,
sealing rings can be replaced in situ,
selection of sealing ring material depending on the application,
easy maintenance and repair.

Bearing bracket of SPX Johnson TGG gear pumps.

7. Bracket with Ball Bearing and Additional Support

robust design,
long service life of ball bearings,
easy maintenance and re-lubrication,
drain hole for draining liquid from the shaft seal,
additional support enables axial thermal expansion and V-belt drive,
possibility of re-adjusting the axial clearance and compensating for axial wear.

Options, accessories

	“S” Type Heating Jacket Mounted on the Cover designed for use with saturated steam or water steam, heats the pump body, internal elements, and relief valve body, allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity, possibility of later adding the jacket cover without the need to replace the main pump parts.
	Electric Heating in the Gear Shaft Journal (available on request for selected models only) use of high-performance cartridge heaters (max. 250°C), appropriate power depending on the environment in which the pump operates, can be used with 110V or 230V AC power supply, heats the pump body and interior, allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity, possibility of replacing the standard pump cover and gear shaft journal set with a new set with electric heating.
	Electric Heating in the Intermediate Body (available for selected models only) use of high-performance cartridge heaters (max. 250°C), appropriate power depending on the environment in which the pump operates, can be used with 110V or 230V AC power supply, heats the pump interior at the rear, the sleeve bearing, and the shaft seal, possibility of creating a temperature gradient towards the shaft seal (cooling or heating), allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity.
	Heating Jacket Around the Shaft Seal (optional) steam-powered version with threaded connections (S-jacket) heats the pump interior at the rear, the sleeve bearing, and the shaft seal, possibility of creating a temperature gradient towards the shaft seal (cooling or heating), allows for safe start-up and shutdown procedures, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity.
	Relief Valve protects the pump and installation against excessive overpressure by limiting the pressure difference between the suction and discharge sides, mounted on top of the pump, horizontally or vertically depending on the pump size, available in a double version: 2 single valves mounted opposite each other protect both flow directions through the pump, optionally available with heating.

Operation principle of relief valves

The relief valves used in the TGGP series are spring-loaded valves that open rapidly when the operating pressure rises to the set pressure value, which is pre-set by the spring. These valves limit the pressure difference (∆p) (or working pressure) between the suction and discharge, not the maximum pressure in the system. If the liquid cannot escape when the discharge side of the pump is blocked, overpressure can cause serious damage to the pump. The relief valve provides an escape route, directing the media back to the suction side after a certain pressure level is reached. An open relief valve signals that the system is not working properly.

Performance curves

Pump capacity:	130 m³/h
Max. rotational speed:	1450 rpm
Max. discharge pressure:	16 bar
Temperature:	300 °C
Viscosity:	80 000 mPa·s
Max size of solids:	225 µm
Impeller type:	gear, made of cast iron, nitrided ductile iron or stainless steel
Pump materialss:	grey cast iron
Mechanical seal:	Sealing rings made of graphite-reinforced PTFE, white aramid or graphite fibers. Optional: special design.

High efficiency – the design of this pump series features axial rotor locking, adjustable clearances, and a balanced hydraulic design. The TG GP series is characterized by high permissible torque and a single clearance class, enabling very good overall efficiency.
10 sizes – a range of models with a maximum capacity of up to 130 m³/h and a pressure of 16 bar, allowing the pump to be adapted to specific customer requirements.
Better priming – oversized ports for better performance, located above the pump centerline. This translates to lower required NPSH (Net Positive Suction Head).
Designed for medium or high viscosity media – undisturbed flow thanks to the optimized tooth profile on the active gear.
No leaks caused by thermal expansion – reliable sealing and pinion shaft with cover.
Well-thought-out design – based on two ball bearings with adjustable axial clearance. Pumps in this series can withstand higher permissible axial forces.
Easy maintenance – possibility of disassembly and access to the pump from both the front and the rear. Simple design and shorter service downtime.
Multiple material options – various designs of bearings and hydraulic parts are available.
Extended service life – compact rotor, robust shafts, optimal bearing design, option of hard metal bearings, vented seal area thanks to a bleed channel.
Various connection options – compliant with EN or ANSI.
Explosion-proof design – compliant with ATEX Directive, category II 2G.

1. Pump Casing

horizontal line connections above the center line,
several PN flanged connections available,
possibility of connecting large diameter pipes,
pressure gauge connections on both flanges,
plug for filling, venting and drainage,
integrated feet under the pump casing,
free thermal expansion towards the rear,
lower pipeline velocity and pressure losses,
good NPSH properties,
liquid remains in the pump until the next start,
facilitated maintenance.

Front Access Module

2. Idler Pin Cover

large recesses at the inlet and outlet,
fixed idler pin thanks to press fit,
several pin material options,
axial liquid inlet relative to the gears improves NPSHr properties,
possibility of selecting appropriate idler pin materials for a given application.

3. Idler Gear with Bushing

unique tooth profile,
large diameter of the idler pin and bushing,
possibility of using low and high viscosity media,
possibility of hydrodynamic lubrication by the pumped liquid to reduce wear of the bushing and idler pin,
possibility of selecting appropriate materials needed for a given application.

Rear Access Module

4. Pump Impeller and Shaft

unique tooth profile and strong rotor teeth,
durable rotor and shaft mounting by press fit,
several material options,
possibility of using high viscosity liquids,
high torque and radial force permissible even at high temperature and with standard clearances,
easy installation of shaft seals without the risk of damaging elastomers,
V-belt drive possible,
possibility of selecting appropriate materials needed for a given application.

5. Intermediate Casing

rotor radial bearing outside the pumped medium,
easy maintenance and repair,
single mechanical shaft seal,
grease-lubricated radial roller bearing,
leakage collection between the mechanical seal and the roller bearing.

6. Gland Packing without Spacer Ring

several sealing ring material options,
sealing rings can be replaced in situ,
selection of sealing ring material depending on the application,
easy maintenance and repair.

7. Bracket with Ball Bearing and Additional Support

robust design,
long service life of ball bearings,
easy maintenance and re-lubrication,
drain hole for draining liquid from the shaft seal,
additional support enables axial thermal expansion and V-belt drive,
possibility of re-adjusting the axial clearance and compensating for axial wear.

	“S” Type Heating Jacket Mounted on the Cover designed for use with saturated steam or water steam, heats the pump body, internal elements, and relief valve body, allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity, possibility of later adding the jacket cover without the need to replace the main pump parts.
	Electric Heating in the Gear Shaft Journal (available on request for selected models only) use of high-performance cartridge heaters (max. 250°C), appropriate power depending on the environment in which the pump operates, can be used with 110V or 230V AC power supply, heats the pump body and interior, allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity, possibility of replacing the standard pump cover and gear shaft journal set with a new set with electric heating.
	Electric Heating in the Intermediate Body (available for selected models only) use of high-performance cartridge heaters (max. 250°C), appropriate power depending on the environment in which the pump operates, can be used with 110V or 230V AC power supply, heats the pump interior at the rear, the sleeve bearing, and the shaft seal, possibility of creating a temperature gradient towards the shaft seal (cooling or heating), allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity.
	Heating Jacket Around the Shaft Seal (optional) steam-powered version with threaded connections (S-jacket) heats the pump interior at the rear, the sleeve bearing, and the shaft seal, possibility of creating a temperature gradient towards the shaft seal (cooling or heating), allows for safe start-up and shutdown procedures, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity.
	Relief Valve protects the pump and installation against excessive overpressure by limiting the pressure difference between the suction and discharge sides, mounted on top of the pump, horizontally or vertically depending on the pump size, available in a double version: 2 single valves mounted opposite each other protect both flow directions through the pump, optionally available with heating.

Performance curves

We provide a wide selection of equipment used across all industry sectors, both in small and large enterprises. We offer professional devices for applications in:

hygienic sectors (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed foods, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, leather tanning).

The bitumen industry focuses on the production, processing, and application of bitumen – including the manufacture of asphalt emulsions, modified bitumens, waterproofing masses, and more. Due to the nature of the material, the bitumen industry requires advanced technologies and specialized equipment to handle substances with high viscosity and extreme temperatures.

We offer a wide range of equipment, such as pumps and mixers, that enhance the efficiency and quality of production processes in the bitumen industry. By applying modern Tapflo solutions, it is possible to achieve bitumen products of the highest quality that meet the strict market requirements. By choosing our solutions, you can significantly increase the efficiency and safety of processes in your production facility.

The chemical industry is a very large and important sector of the economy, encompassing all types of enterprises that manufacture their products using chemicals.

At Tapflo, we provide modern industrial solutions that streamline manufacturing processes and improve chemical production efficiency. We understand that handling chemicals requires the use of the highest quality equipment, and that is exactly what we deliver. Our motorers ensure the selection of devices suitable for every type of chemical, including pumps, valves, mixers, and filters tailored to the specific medium. The highest quality of Tapflo equipment guarantees safety, accuracy, and optimization of production costs.

The household chemical manufacturing industry must continuously evolve to meet market demands and environmental standards by implementing modern technologies. The production process in the chemical industry, including cleaning agents, detergents, bleaches, and other products, is complex. Every manufacturer must use precise machinery to ensure quality, safety, and the highest efficiency of their installations.

We offer a range of equipment adapted to the challenging conditions of chemical production. Using Tapflo machines ensures efficient, safe, and environmentally friendly manufacturing.

We provide a wide range of equipment used across all industry sectors, both in small and large enterprises. We offer professional devices for applications in:

hygienic industries (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed food, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, tanning).

The electroplating industry plays a key role in the production of various metal components. Electroplating processes require the use of equipment designed to operate in aggressive environments – with chemicals, acids, or alkalis.

Our offer includes electroplating pumps, valves, filters, and mixers, whose design and reliability enable the production of the highest quality metal coatings. We provide equipment used in industries such as metallurgy, electroplating, and paint finishing.

The cosmetics industry is a dynamically growing sector where production quality and efficiency are of paramount importance. Achieving these goals requires modern and reliable equipment such as pumps, mixers, valves, and homogenizers.

Thanks to the variety of available products, Tapflo can tailor flow solutions to the specific needs of customers in the cosmetics industry. Our technologically advanced machines play a fundamental role in production processes, ensuring high quality of cosmetic products. We guarantee precision, efficiency, and safety, which translate into superior product quality and consumer satisfaction.

We provide a wide range of equipment used across all branches of industry, both in small and large enterprises. We offer professional devices for applications in:

hygienic sectors (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed food, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, tanning industry).

We provide a wide selection of equipment used across all branches of industry, both in small and large enterprises. We offer professional devices for applications in:

hygienic sectors (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed foods, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, tanning industry).

Pumps and equipment for food production play a key role in ensuring efficiency, hygiene, and safety of manufacturing processes.

Investing in high-quality equipment pays off by improving product quality, increasing productivity, and reducing operational costs. By choosing the right food-grade pumps, mixers, or homogenizers from Tapflo, food industry companies can meet market challenges and deliver products of the highest quality to consumers. Every Tapflo device is characterized by compliance with strict sanitary standards such as EHEDG, 3-A, FDA, and USP VI.

The pet food industry is a dynamic segment of the food sector, specializing in the manufacturing of balanced nutrition for dogs, cats, and other domestic and farm animals. Tapflo supplies modern equipment for pet food production facilities, ensuring the highest levels of hygiene and operational reliability.

Our solutions handle a wide range of media consistencies – from liquid additives to dense feed masses – regardless of temperature or viscosity. Tapflo devices are designed for easy cleaning using CIP/SIP methods and comply with FDA and EHEDG standards. As a result, pet food production runs smoothly, safely, and with consistently high product quality.

Industry Sector

We present to you the full range of products we supply. The offerings here are aimed at users of various industrial applications. We invite you to explore our extensive portfolio, which includes pumps, heat exchangers, homogenizers, hygienic valves, filters, and a wide array of other solutions.

We provide comprehensive, professional, and above all reliable diaphragm pumps, centrifugal pumps, and other equipment that ensure safe and hassle-free liquid transport. Our forty years of experience and a qualified team of top specialists guarantee that the industrial equipment we supply successfully meets the expectations of even the most demanding clients. Our diaphragm, centrifugal, vortex, gear, dosing pumps, and many others find applications across various industry sectors.

One of the most universal pumps available on the market, compressed air-operated diaphragm pumps can be used in a wide range of applications to transfer almost any medium. Their simple operating principle and robust, compact design enable these pumps to meet the high demands of various industries.

Trouble-free dry running. Smooth flow control. Self-priming up to 5 m.
No electrical installation required. Few components. Compact and robust design. Oil-free air distributor.
Compressed air supply.

Due to changes in the way we think about our impact on the environment, we are proud to present EODD – Electric Diaphragm Pumps. The product follows a modern approach but is still based on the original diaphragm pump technology, which has proven to be very effective. We consulted with our customers, who expressed a need for the features and benefits of a traditional diaphragm pump, but with the added advantage of lower operating costs. The pump is powered by a high-efficiency electric motor (IE3 class) and there is no chance of hydraulic fluid leakage, as the pump simply does not need it.

A Filter Press Pump is a specialized type of pump designed to fill a filter press with a slurry or suspension from an external storage or disposal facility, typically used in solid-liquid separation processes, typically at high pressures reaching 24 bar.

Tapflo Filter Press Pumps are known for their robust construction, reliable performance, and ability to handle high-pressure applications with ease. They are equipped with a non-return valve to prevent backflow and are available in various materials to suit different process requirements. Air operated filter press pumps have the unique feature that when the filter press is full, they stop and no additional safety systems are required to shut down the pump (like in case of electrically operated filter press pumps).

Tapflo offers a wide range of centrifugal pumps made of stainless steel and PP and PVDF plastics, including horizontal or vertical pumps, as well as magnetically driven pumps. Available in hygienic and industrial designs, Tapflo centrifugal pumps are among the most versatile pumps currently available on the market. Selected pumps can be designed for safe contact with food and are also available in ATEX explosion-proof versions.

Hose pump is a type of positive displacement pump that can be used to pump a wide variety of liquids. Tapflo industrial hose pumps use the principle of peristalsis, whereby the deformation and compression of a soft elastomer hose allows the liquid to pass through the device.

Pumps of this type are the best solution for delicate, corrosive, abrasive or dry media, including those containing solid particles. The special design, in which only the hose comes into contact with the pumped product, reduces operating costs by reducing wear on internal components and allows operation in very demanding conditions.

Tapflo submersible pumps are designed for a wide range of applications. We offer pumps for draining flat surfaces, sewage, spring water, rainwater and groundwater, as well as sludge and sediments containing solid particles. All our submersible pumps provide the performance, reliability and ease of use you need when pumping liquids consisting mainly of water. A submersible pump can be used as a permanent solution for draining water when a certain liquid level is reached, or as a mobile and easy-to-use drainage pump when unwanted water needs to be removed.

Tapflo gear pumps are characterized by their robust construction, ensuring high durability and extended service life. They feature a well-thought-out design with a unique tooth profile on the drive gear, reduced energy consumption with high efficiency, and smooth, pulsation-free media transfer.

Modularity allows for interchangeability of parts between different models within each series, as well as the possibility of dismantling the pumps from the front or rear. This also contributes to ease of maintenance and reduced downtime.

A wide selection of material designs, seal types (packing, mechanical, or lip seals), and additional options such as

The original design of the rotary lobe pump goes back to the early 30’s and has since then been further developed and improved. Rotary lobe pumps are easy to clean and have gentle product handling characteristics. They contain few cavities, which reduces the risk of bacterial growth and makes them particularly suitable for the transport of sensitive fluids – from glue to whole strawberries.

Applications: Food and Beverages, Pharmaceutical, Chemical, Cosmetics, Pulp & paper.

The series of dosing pumps includes: the range of dosing pumps includes mechanical diaphragm pumps, hydraulic diaphragm pumps, electromagnetic diaphragm pumps and piston pumps. Pumps from the following series can be used for precise dosing of various types of compounds needed to carry out chemical reactions. Their design allows them to work with high-pressure systems, while enabling very precise dosing. This series of pumps is ideal for combining into multi-head systems, where each head can pump a different medium and have an independent flow rate setting.

Mechanical diaphragm dosing pumps - D Series

Eccentric screw pumps for liquids with high viscosity or fragile content. With almost pulsation-free flow up to 110 m3 /h and pressure up to 48 bar.

The pump provides almost a pulsation-free flow, can handle high pressures and is at the same time very gentle on the liquid and its contents with excellent suction capabilities. Model DX complies with strict hygiene requirements in the food and pharmaceutical industry.

Electric or air operated drum and container pumps are lightweight, handy and very powerful devices for an economical and safe filling and transferring of thin to medium viscous media, neutral or aggressive, non-flammable or flammable substances out of drums and containers.

Drum pumps have a very wide range of applications in the food, chemical, cosmetic, electroplating, petrochemical, and machine production industries.

IBC containers and drums are widely used in industry – they are the simplest way to store and transport various liquids. Since many of these liquids must be mixed before use in the process, we offer a range of dedicated industrial mixers. These are simple, yet robust and safe to operate, high-quality devices. Designed and configured for common industrial applications, they enable mixing directly in the IBC container or drum. Thanks to the use of mixers, intermediate tanks can be omitted and the process becomes faster and more economical.

Tapflo hygienic valves are high-quality components made of forged 304L and 316L stainless steel. All valves in our range are serialised to ensure full traceability, even 304L valves, and are manufactured in a TÜV NORD ISO 9001:2015 approved production process. The valves are 3A and FDA certified for use in the food and dairy industries. They also meet the pharmaceutical industry’s requirements for USP Class VI elastomers.

Our offer is complemented by pump units, industrial trucks, acoustic and thermal shields, and SKID technological systems. Bearing in mind the diverse needs of our customers, we offer not only a standard range of products, but also customised solutions tailored to your requirements. Our range includes pump units of various power ratings and sizes. We are able to supply motors and gear motors for every standard pump available in our offer. If you cannot find a solution that meets your expectations in our offer, we will be happy to design and implement a customised solution.

Pumps

Other Equipment

We provide comprehensive solutions for the chemical, food, pharmaceutical, cosmetic, and paper sectors. Our products are fully safe and environmentally friendly, and they meet the strict quality requirements imposed by both national and international standards and directives. For this reason, we collaborate only with partners who share similar values in their operations. Among our partners is Doseuro, offering dosing pumps in three main versions: plunger pumps, hydraulic diaphragm pumps, and mechanical diaphragm pumps. A wide selection of specialized pumps is also made possible through cooperation with companies such as Jessberger, Hydra-Cell, CDR, SPX FLOW Johnson Pump, Steinle Industriepumpen GmbH, PCM, and APV.

Pomac Pumps are high-quality, hygienic pumps widely used across industries such as food & beverage, pharmaceuticals, cosmetics, and chemicals. Designed in the Netherlands, these pumps are known for their reliability, durability, and efficient handling of a wide range of liquids — from thin, water-like fluids to highly viscous products. With a focus on hygienic design, easy maintenance, and energy efficiency, Pomac pumps provide a versatile solution for processes that demand precision, cleanliness, and consistent performance.

The key elements that have contributed to the international success of Salvatore Robuschi, present on the market since 1935, are customer-oriented design and the technical and commercial knowledge of its employees. The main goal of Salvatore Robuschi is to become a reference brand for process pumps, designing “tailor-made” solutions for every need. The offer includes centrifugal pumps with closed or open impeller according to ISO 5199-2858, with vortex impeller with large free passage, as well as with channel impeller (closed and open). All these pumps are available in horizontal and vertical configuration.

Cipriani Harrison Valves has been expanding its specialist motorering, product and process knowledge for over 40 years to meet the most demanding customer needs for hygienic industrial valves. Cipriani Harrison Valves is an ISO 9001:2015 certified company, certified by TÜV NORD.

Adhering to international standards such as ASME BPE, EHEDG and 3A, Cipriani Harrison Valves successfully supplies the highest quality hygienic valves and components to the food, dairy, wine, brewing, cosmetics, biopharmaceutical and other related industries.

In post-war Japan, the infrastructure for water supply and treatment plants was underdeveloped, and poor-quality drinking water spread many infectious diseases. Toshio Yamada wanted to change this, so in 1965 he began producing equipment for chlorine disinfection at his home in Ikuno-cho, Asago City, Japan. This became the starting point for what would later become the pump manufacturer Tacmina. In 1965, the first dosing pump, the “N-Feeder S-Type,” was launched, and today Tacmina is a well-known global supplier of dosing pumps and pulsation-free diaphragm pumps of the highest quality.

The Doseuro brand combines solid technical knowledge, gained through many years of experience in the dosing field, with a commercial understanding of the changes in this field and particular attention to our customers’ requirements.

Doseuro pumps are distinguished by high reliability achieved through continuous product development, updating production techniques, quality control and rigorous testing at all stages of production. Each metering pump model has been carefully designed, built and tested to ensure long life and usability.

The history of CDR dates back to the pre-World War II era. In the early 1950s, Ferdinando Abordi acquired “ARI Pompe” – a family business whose production was based on cast iron pumps for domestic, agricultural and industrial use. In the mid-1960s, the evolving market demanded a new and sophisticated product, and CDR transformed to fulfill special customer orders. The production of stainless steel and special alloy pumps was started. Subsequently, the production of horizontal and vertical centrifugal pumps, compliant with DIN 24256 standards for the chemical industry, was implemented.

Jessberger is a family-owned company based in Ottobrunn near Munich. The company specializes in the production of electric and pneumatic drum and container pumps, vertical and horizontal screw pumps, dosing pumps for high-viscosity media, hand pumps and a wide range of accessories such as flow meters, nozzles, etc. Jessberger’s unparalleled reputation in the field of drum pumps is the result of personalized and professional support and maximum flexibility in all areas and direct contact with customers. Jessberger attaches the greatest importance to strict quality control.

Nova Rotors is an Italian manufacturer specializing in progressive cavity pumps, twin-screw pumps, and centrifugal pumps. Founded in 1990, the company has built a strong reputation for innovation, reliability, and customization, offering solutions for industries such as wastewater treatment, food & beverage, chemicals, and pharmaceuticals. With a focus on efficiency, durability, and hygienic design, Nova Rotors pumps are trusted worldwide for handling a wide variety of fluids — from low-viscosity liquids to highly viscous and abrasive products.

EMEC is an Italian manufacturer of dosing and control systems, specializing in high-quality solenoid and motor-driven dosing pumps, controllers, and accessories for water treatment and industrial applications. Founded in 1982, EMEC has become a trusted global supplier known for precision, reliability, and innovation in chemical dosing technologies. With a strong focus on research and development, EMEC provides tailored solutions for sectors such as water treatment, swimming pools, agriculture, and industrial processes.

Partners

We specialize in designing unconventional solutions tailored to the most demanding needs of our clients. We do this by introducing additional functionalities to the offered devices, increasing their mobility, adjusting their dimensions or introducing advanced safety and control systems. We offer all solutions that increase the comfort and safety of work, such as stationary and mobile systems for unloading media from tanks, barrels, IBC containers, etc.

Our mission is to provide technical solutions that guarantee proper functionality and stable operation in any environment.

Unloading drums filled with highly viscous liquids has never been easier. Our High Viscosity System (HVS) is designed to simplify this task, offering automated efficiency and exceptional product-saving capabilities. With HVS, you’ll experience a smooth unloading process, allowing you to focus on other critical tasks while achieving up to a 99% product removal rate. Say hello to effortless drum unloading with HVS.

Simplify the unloading of highly viscous liquids with our High Viscosity System Quattro-type (HVS Quattro). It is designed for high-volume applications where multiple drums (typically four) are stored on pallets. The HVS Quattro allows you to switch between the drums easily, thanks to our revolutionary articulated arm. Experience an impressive product removal rate of up to 99% which will reduce your production costs.

Unloading drums containing highly viscous liquids has become more efficient and precise with our High Viscosity System Flexi-type (HVS Flexi). This system simplifies the task, providing automation and effective product-saving features. The HVS Flexi ensures a smooth unloading experience, allowing you to concentrate on other important tasks while achieving an impressive product removal rate of up to 99%. It is suitable for applications with low to moderate volumes, such as supplying filling or packing lines directly.

Experience efficient and safe tank emptying operations with our flexible Unloading System. Designed to handle IBCs (Intermediate Bulk Containers), Mauser, Goodpack or Bag-in-Box® containers, totes, drums, barrels, and various other storage vessels, this system efficiently manages both low and high-viscosity products across a wide range of industries. Using a reliable suction lance mechanism, its innovative design and customizable control system ensure optimal performance while maintaining the highest industrial safety standards.

SLES* is an organic chemical compound with excellent cleaning and foaming properties. For this reason, it is commonly used in the production of cleaning agents, soaps, shampoos, and household chemicals. SLES is typically supplied to manufacturers of these liquids at a 70% concentration, and due to its physical properties, such a concentrated solution is difficult to process and must be diluted below 27% before being used in the production line. Our system enables continuous dilution with maximum efficiency and safety, reducing costs for the company in the long term.

Achieving precise mixing of ingredients to obtain the desired final product—while maintaining strict proportions, accuracy, and sequence—poses a major challenge for industrial manufacturers. The mixer was created specifically for this purpose. It is based on a system for diluting concentrated ingredients such as SLES. However, it has been designed in a modular way, allowing us to easily configure the system to meet actual production needs. The ingredients of the final product can be drawn from various types of tanks.

Precise and repeatable filling operations with our versatile container filler. Designed for applications requiring high accuracy and compatibility with various containers and products, from small-volume containers to large industrial drums. Filling accuracy below 0.1% ensures optimal production line performance while maintaining the highest industrial and sanitary standards. Suitable for both high- and low-viscosity products.

Responding to the individual needs of users, Tapflo offers the delivery of compact, automated process systems on a “turnkey” basis. Every demand for a non-standard pumping system is an opportunity for us to create a unique, tailor-made SKID system. Thanks to our extensive design and manufacturing capabilities, we provide solutions developed with specific functionality in mind. We offer virtually unlimited possibilities for the development of pumping units, both in terms of mechanics and automation.

Tapflo presents a series of chemical unloading systems designed for every branch of industry where liquids need to be stored, transferred, and dosed. Our solution, based on the use of a diaphragm pump, is suitable for handling viscous liquids, chemically aggressive substances, as well as those containing solid particles.

Several tank sizes can be combined with pumps in various configurations. Additional options allow the system to be tailored to specific needs. In this way, we have created the simplest and most versatile pumping solutions on the market.

saThe use of protection systems ensures not only efficient but also safe operation of diaphragm, lobe, gear, screw, and centrifugal pumps. Protection systems detect hazardous situations and respond immediately, for example by automatically shutting down the device. The pump protection solutions offered by Tapflo operate based on dedicated sensors. These include media presence sensors such as optical indicators, as well as tuning fork and capacitive sensors designed to detect the presence of a medium or to monitor its level in tanks or pipelines.

Tapflo presents a series of hygienic covers designed specifically for diaphragm pump users. The stainless steel housing is durable and sealed, effectively isolating the pump from its surroundings. Filled with a dedicated insulation mat, the hygienic covers are an ideal solution for acoustic or thermal separation of the pump. Tapflo industrial covers combine user-friendly design with high-quality materials. Built to last, they will serve reliably for years in nearly any application.

System type

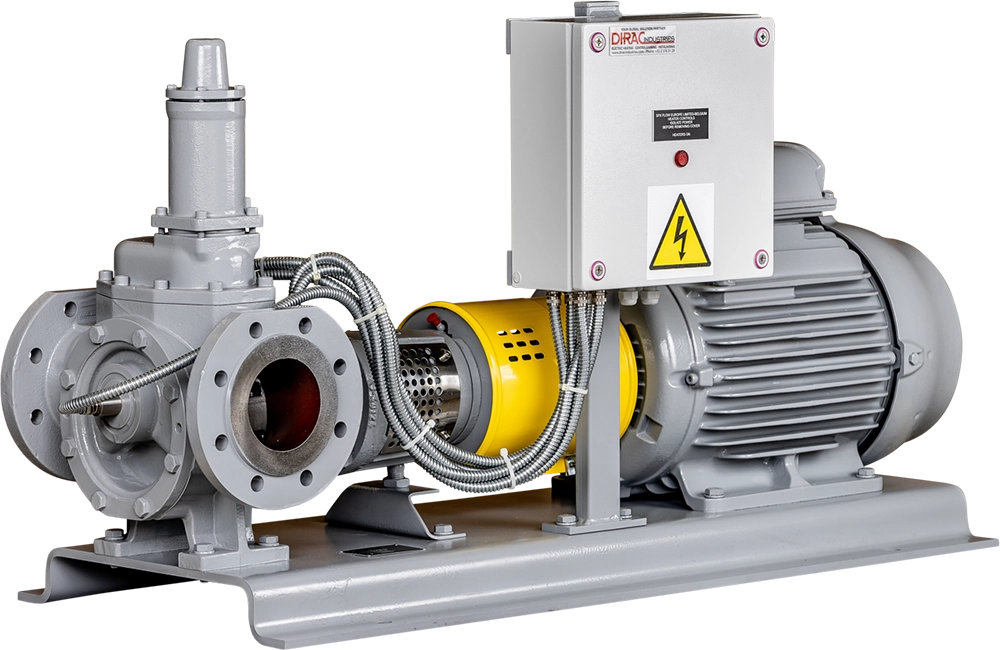

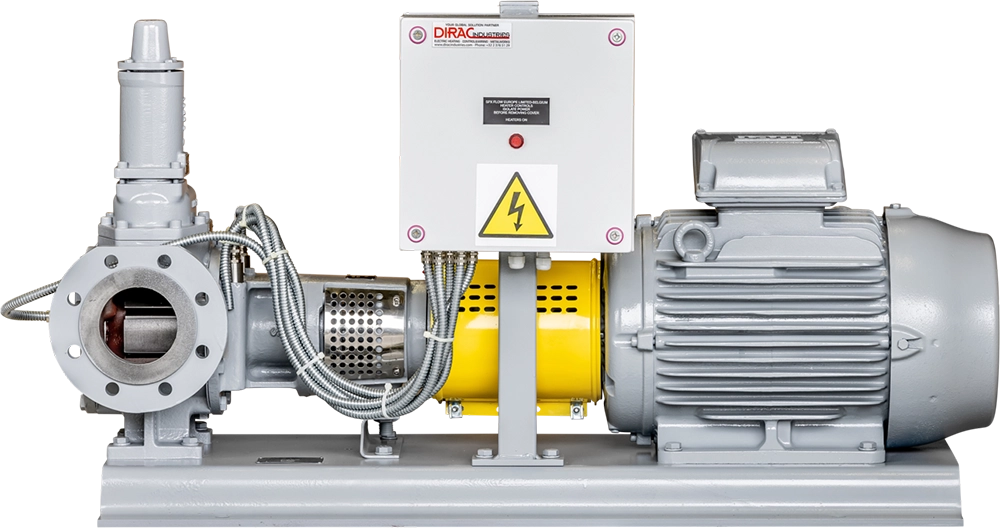

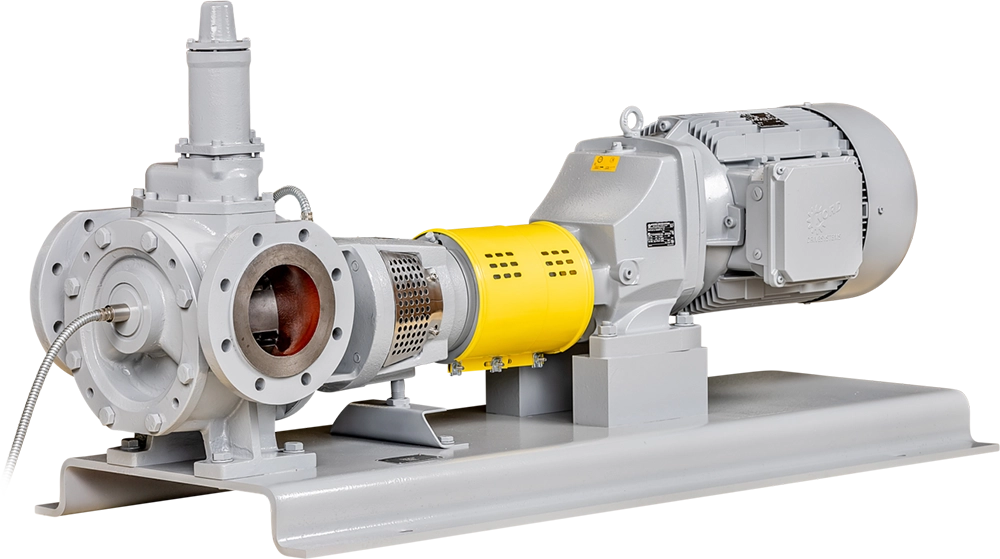

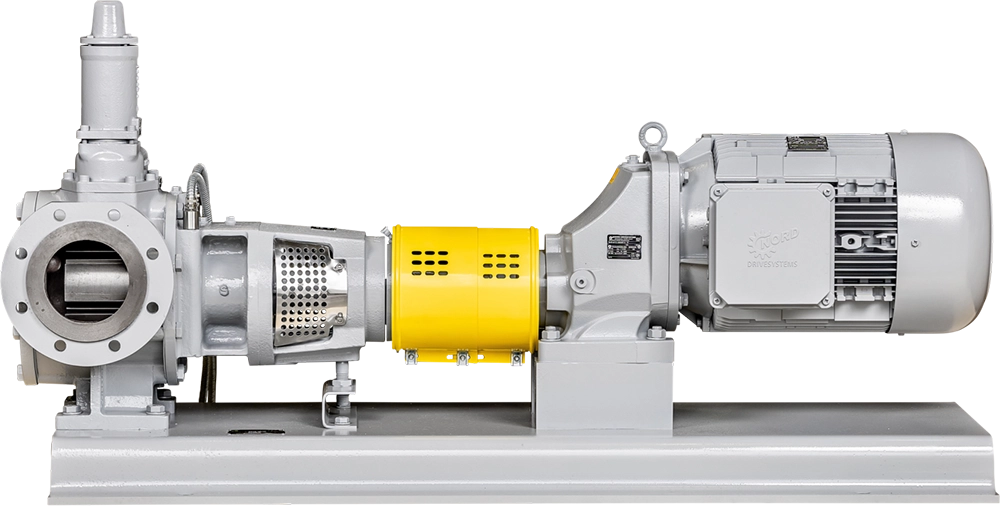

Gear pumps with gland packing packing – TGGP series

Technical data

Typical applications

Product features

Operation principle

Modular design

Construction

Options, accessories

Operation principle of relief valves

Performance curves

RELATED PROJECTS

RELATED PRODUCTS
