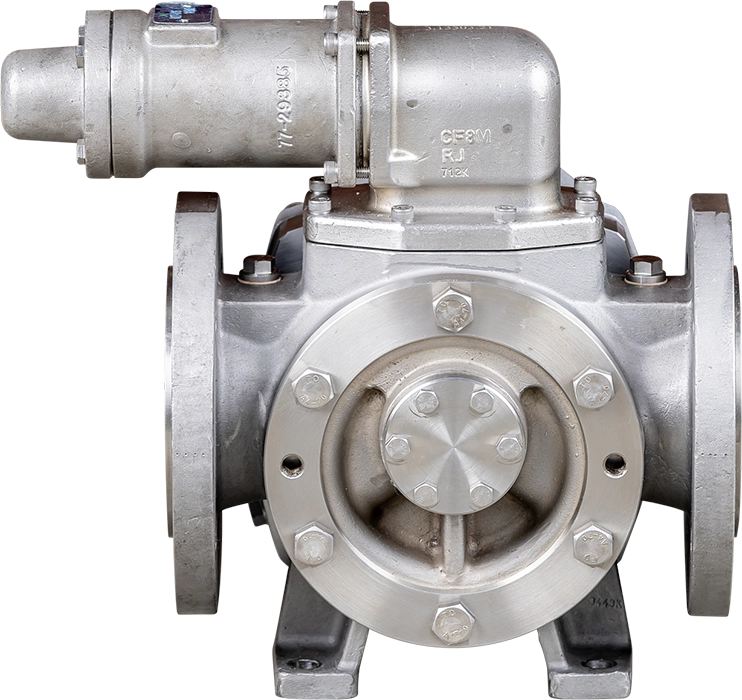

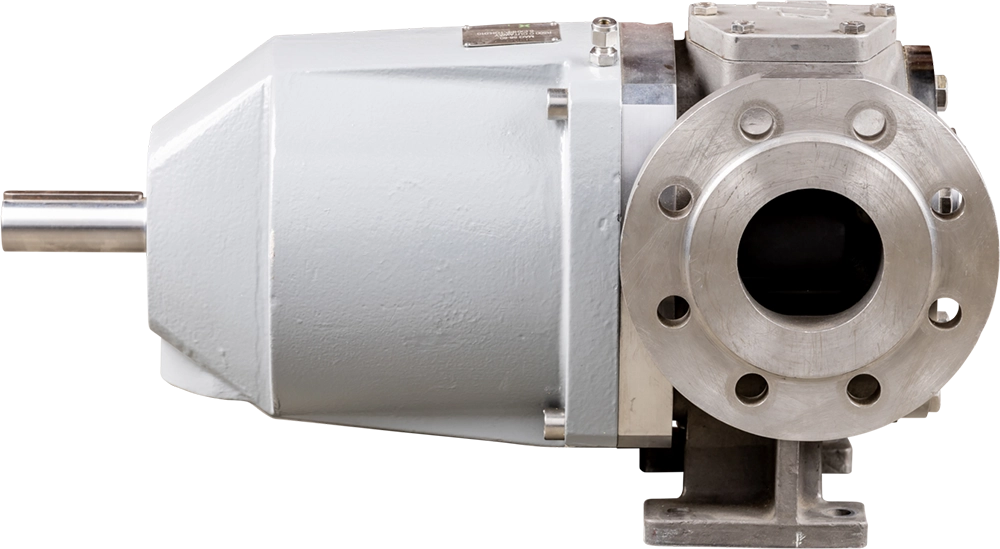

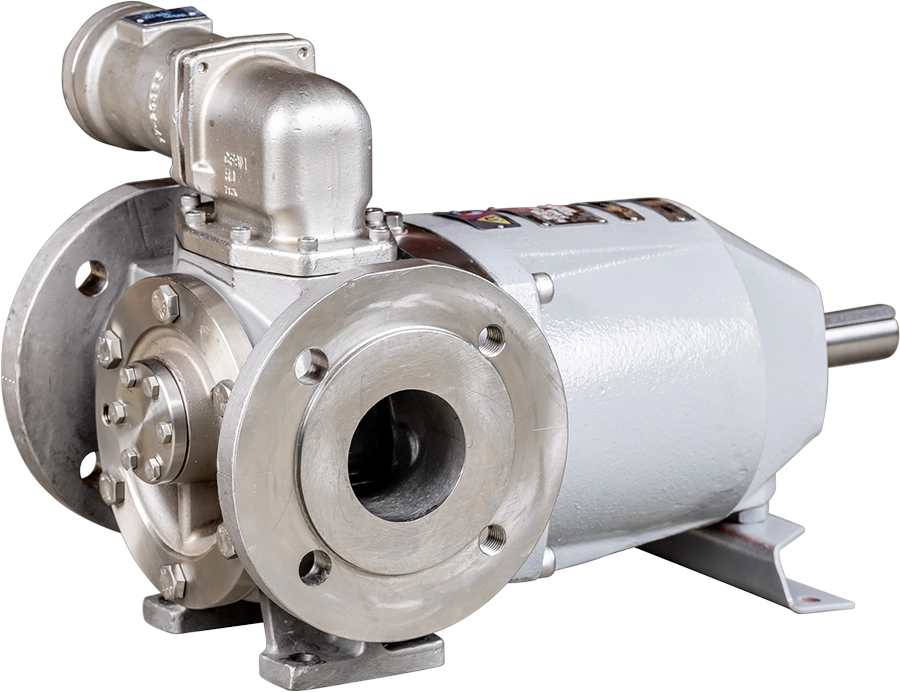

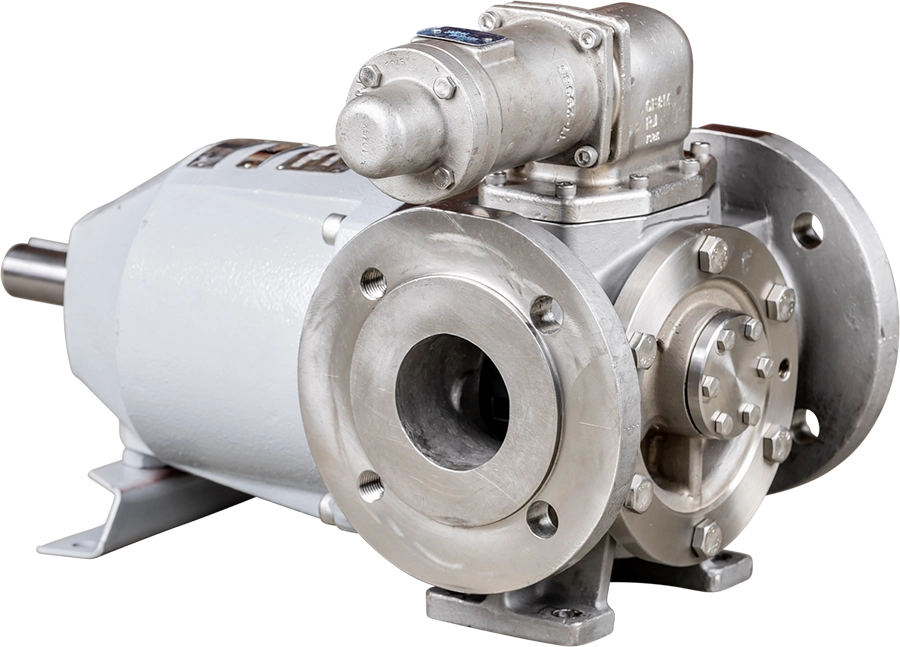

SPX Johnson TG MAG gear pumps are seal-less gear pumps for low or high viscosity liquids that are corrosive, toxic, aggressive, or expensive. Total confinement of the liquid inside the pump is achieved through a hermetically sealed system that isolates the liquid from the surrounding environment. This design ensures clean and safe operation without leakage of the pumped medium. Magnetically driven pumps are therefore not only environmentally friendly, but also contribute to improved safety in chemical and processing plant environments, and are also compliant with the ATEX directive. This series has a wide selection of material designs and additional options, such as heating jackets, relief valves, or temperature sensors.

TopGear Mag gear pumps can operate in the chemical, petrochemical, and machine manufacturing industries.

For toxic, aggressive and viscous liquids
Magnetic seal – safe operation without leaks
High efficiency, insulation shield
Easy maintenance, extended service life, monitoring options
Designed for ATEX zones

Max. capacity: 80 m³/h
Max. discharge pressure: 16 bar
Max. temperature: 260 °C
Medium viscosity: 10 000 mPa·s
Pump materialss: grey cast iron or AISI316 stainless steel
Impeller type: gear, made of stainless carbon steel
Certificates: ATEX

BROCHURE MANUAL

TopGear Mag gear pumps can operate in the chemical, petrochemical, and machine manufacturing industries.

Technical data

Pump capacity:	80 m³/h
Max. rotational speed:	1450 rpm
Max. discharge pressure:	16 bar
Temperature:	260 °C
Viscosity:	10,000 mPa·s
Max size of solids:	150 µm
Impeller type:	gear, made of nitrided carbon steel or stainless steel
Pump materialss:	grey cast iron or AISI316 stainless steel
Insulating jacket:	Hastelloy C4
Magnets:	SmCo (standard) good chemical and temperature resistance up to 260 °C NdFeB (optional) for applications requiring higher torque – temp. limit to 120 °C
Elastomer materials:	FPM, PTFE other materials on request

Typical applications

Application example
Toxic and hazardous liquids	Phenols, solvents, isocyanates, sodium hydroxides, epoxy resins, paints, adhesives, inks, fuel additives, corrosive solutions, sugar solutions, oils, bitumens, alcohols and other crystallizing or hardening liquids.

Product features

The TopGear (TG) series combines robust construction with small or large clearances and a unique tooth profile on the active gear. TG MAG series pumps are seal-less internal gear pumps designed for low or high viscosity liquids that are corrosive, toxic, aggressive, or expensive. This series also offers a wide selection of material designs and additional options, such as heating jackets, relief valves, or temperature sensors.

TopGear MAG pumps are equipped with a unique forced circulation and cooling system. This is a patented, integrated circulation system located in the intermediate cover. It guarantees cooling and lubrication of the magnetic coupling and sleeve regardless of operating pressure or liquid viscosity. Complete enclosure of the liquid inside the pump is achieved thanks to a hermetically sealed system that isolates the liquid from the surrounding environment. This eliminates the need for shaft seals and the associated wear and leakage that would normally occur. This design ensures clean and safe operation. Magnetically driven pumps are therefore not only environmentally friendly, but also contribute to improved safety in chemical and processing plant environments. TG Mag series pumps also comply with the ATEX directive.

Proven hydraulics – TG MAG pumps utilize proven TopGear series technology for high reliability.
Magnetically coupled pumps – the closed pumping system ensures clean, safe operation without leakage of hazardous, toxic, or expensive liquids.
Unique forced circulation and cooling system – the patented integrated circulation system in the intermediate cover guarantees cooling and lubrication of the magnetic coupling and sleeve regardless of operating pressure or liquid viscosity.
Large distance between the inner magnet and the containment shell – minimized friction when pumping highly viscous liquids ensures reduced heat generation and long-lasting operation. Sleeves made of special silicon carbide can handle low viscosity liquids and are extremely resistant to abrasion.
Containment shell between magnets made of Hastelloy C4 – the chemically resistant shell ensures reduced eddy current losses, increases efficiency, and minimizes temperature rise. Safe operation for a long time.
Bushing protection system – protects both the outer and inner magnets from operating with a damaged containment shell caused by bushing failure. No risk of leakage or contamination.
Monitoring options – possibility of installing temperature, pressure, and vibration sensors to minimize operating costs.
Heating jackets and safety valves – heating jackets ensure safety during pump start-up and shutdown. Pump heating can be done with steam or thermal oil.
Easy maintenance – possibility of disassembly and access to the pump from both the front and the rear.
High level of interchangeability with the TopGear GM series – easier servicing and fewer spare parts in stock.
Design for use in potentially explosive atmospheres – compliant with ATEX Directive, category II 2G.

Operation principle

Operating principle of SPX Johnson TopGear gear pumps

The rotor and pinion mesh together as they rotate. This creates sealed chambers with variable volume, resulting in a vacuum that forces the medium to flow into these spaces. The liquid is transported in the chambers from the suction side to the discharge side. The spaces are separated by an element that prevents the liquid from returning to the suction side. The medium is pumped to the discharge side as a result of the decreasing volume of the inter-tooth spaces.

Modular design

	Pump housing with integrated feet and line connections The pump housing can remain installed in the piping system during inspection and repair of the rotors and shaft seal.
	Front access module The entire front (gear, cover, and gear stub) can be removed for easy internal inspection and repair.
	Rear access module The rotor with shaft, intermediate housing with rotor bearing, shaft seal and bearing bracket can be removed for easy inspection, repair and shaft seal replacement.
	Top-mounted relief valve The pre-assembled and pre-set overpressure relief valve can be removed for inspection, repair and if the direction of rotation or pressure needs to be changed.

Construction

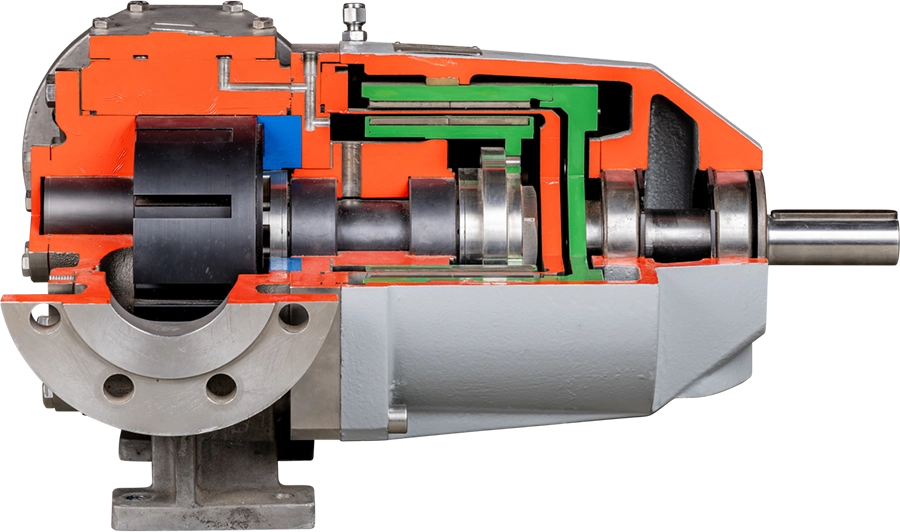

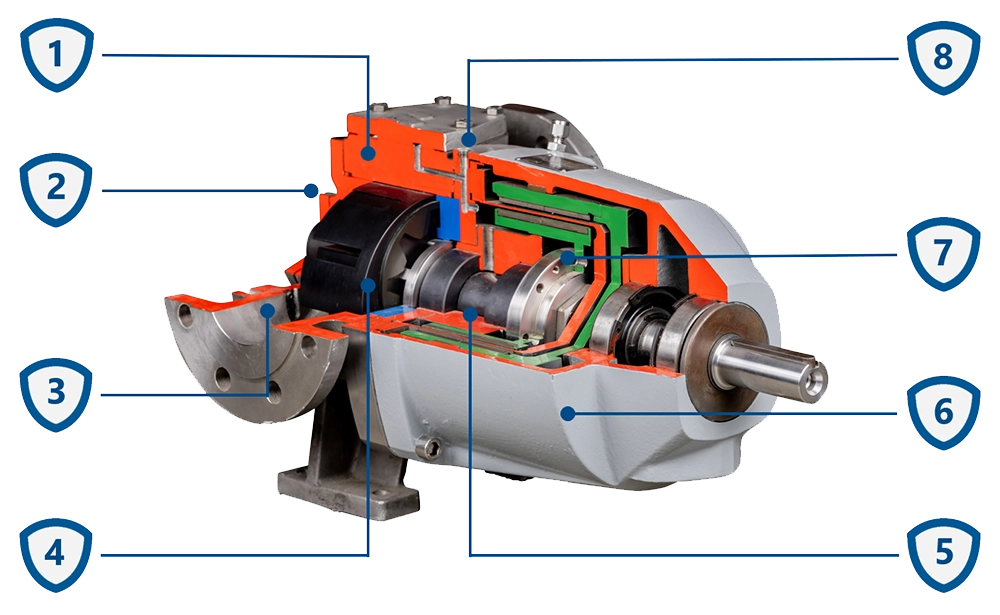

SPX Johnson TG Mag magnetically coupled gear pump design

1. Pump Casing

horizontal line connections above the center line,
several PN flanged connections available,
possibility of connecting large diameter pipes,
pressure gauge connections on both flanges,
plug for filling, venting and drainage,
integrated feet under the pump casing,
free thermal expansion towards the rear,
lower pipeline velocity and pressure losses,
good NPSH properties,
liquid remains in the pump until the next start,
facilitated maintenance.

Front Access Module

Cover with gear pin in SPX Johnson TGG gear pumps.

2. Cover with Gear Pin

large recesses at the inlet and outlet,
fixed gear pin thanks to press-fit,
several pin material options,
axial liquid inlet relative to the gears improves NPSHr properties,
possibility of selecting appropriate gear pin materials for a given application.

Heating jacket of SPX Johnson TGG gear pumps.

“S” or “T” type heating jacket mounted on the cover (optional)

Additional front cover with heating jacket with several types of connections:

steam-powered version with threaded connections (“S” type),
thermal oil powered version with flanged connections (“T” type),
heats the pump casing, internal elements and the relief valve body.

3. Gear with Sleeve

unique tooth profile,
large gear pin and sleeve diameter,
possibility of using low and high viscosity media,
possibility of hydrodynamic lubrication by the pumped liquid to reduce wear of the sleeve and gear pin,
possibility of selecting appropriate materials needed for a given application.

Rear Access Module

Impeller and shaft of the SPX Johnson TopGear Mag gear pump.

4. Impeller and Pump Shaft

rotor shaft machined in one piece,
construction materials: carbon steel or stainless steel,
unique tooth profile,
high safety margin in case of mechanical failure,
reduced bearing forces and low noise level,
possibility of choosing corrosion-resistant material.

Bearing of the SPX Johnson TG Mag gear pump.

5. Bearing

compact, pre-assembled bearing set,
bearings lubricated by the pumped medium,
cooling and lubrication system integrated in the bearing system,
no adjustment shims or axial bearing clearance adjustment required,
the use of a wear-resistant shaft sleeve protects the shaft,
bearing load reduced thanks to the compact design and hydraulic balancing.

Bearing bracket of SPX Johnson TopGear Mag gear pumps.

6. Bearing Bracket

possibility of exchanging elements with TG GM series pumps with double mechanical seal,
additional support under the bearing bracket relieves the pump feet and enables the pump to be driven by a belt drive,
maintenance-free,
anti-spark safety bearing prevents the outer magnetic rotor from hitting the bracket in case of ball bearing failure,
possibility of installing a PT100 temperature sensor,
additional protection of bearings against water and contamination thanks to the labyrinth seal design.

Magnetic coupling of SPX Johnson TopGear Mag gear pumps.

7. Magnetic Coupling

small dimensions and minimized hydraulic friction losses inside the coupling,
good thermal stability of SmCo magnets allows for safe operation at temperatures up to 250 °C,
magnets protected against corrosion from the pumped medium,
large gaps minimize hydraulic friction losses and make the magnetic coupling suitable for high viscosity media,
easy assembly and disassembly.

Intermediate cover of SPX Johnson TopGear Mag gear pumps.

8. Intermediate Cover

compact design combined with a bearing set,
integrated circulation pump,
available in carbon steel or stainless steel versions,
various heating options.

Options, accessories

	“S” Type Heating Jacket Mounted on the Cover Steam-powered version with threaded connections. heats the pump body, internal elements, and relief valve body, allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity, possibility of later adding the jacket cover without the need to replace the main pump parts.
	“T” Type Heating Jacket Mounted on the Cover Thermal oil-powered version with flanged connections. heats the pump body, internal elements, and relief valve body, allows for safe pump start-up and shutdown, allows the pump to reach the correct temperature when the liquid solidifies or has excessive viscosity, possibility of later adding the jacket cover without the need to replace the main pump parts.
	Gear Shaft Cover (available only with the “T” type heating jacket option) ensures tightness between the pump interior and the heating jacket at extreme temperature and pressure, very tight gear shaft seal, high-temperature design – strong bolts and thick cover wall.
	Relief Valve protects the pump and installation against excessive overpressure by limiting the pressure difference between the suction and discharge sides, mounted on top of the pump, horizontally or vertically depending on the pump size, available in a double version: 2 single valves mounted opposite each other protect both flow directions through the pump, optionally available with heating.
	PT100 Temperature Sensor used to measure the temperature of the pumped liquid, the obtained measurement can be used to set a process interruption when a pre-set temperature limit is reached.

Operation principle of relief valves

The relief valves used in the TG Mag series are spring-loaded valves that open rapidly when the operating pressure rises to the set pressure value, which is pre-set by the spring. These valves limit the pressure difference (∆p) (or working pressure) between the suction and discharge, not the maximum pressure in the system. If the liquid cannot escape when the discharge side of the pump is blocked, overpressure can cause serious damage to the pump. The relief valve provides an escape route, directing the media back to the suction side after a certain pressure level is reached. An open relief valve signals that the system is not working properly.

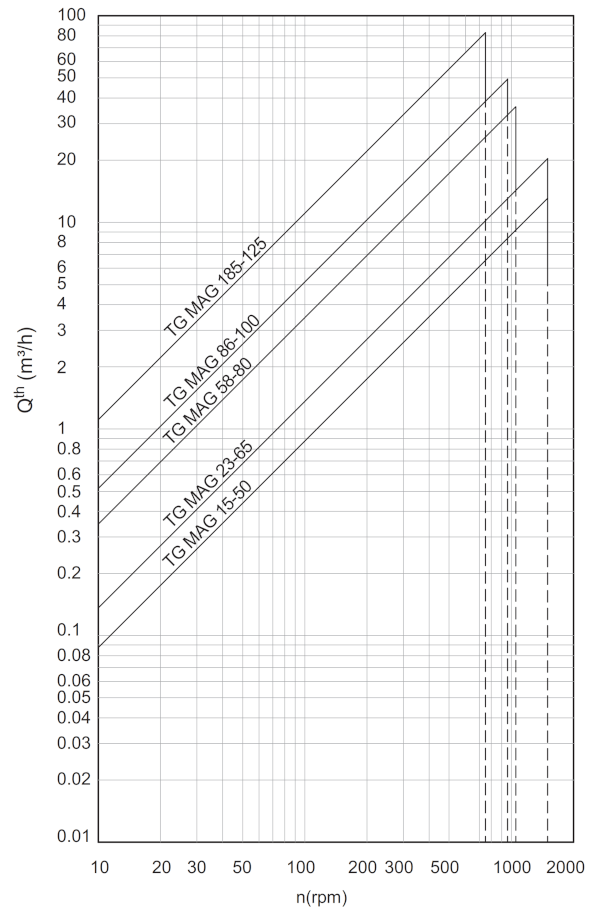

Performance curves

Pump capacity:	80 m³/h
Max. rotational speed:	1450 rpm
Max. discharge pressure:	16 bar
Temperature:	260 °C
Viscosity:	10,000 mPa·s
Max size of solids:	150 µm
Impeller type:	gear, made of nitrided carbon steel or stainless steel
Pump materialss:	grey cast iron or AISI316 stainless steel
Insulating jacket:	Hastelloy C4
Magnets:	SmCo (standard) good chemical and temperature resistance up to 260 °C NdFeB (optional) for applications requiring higher torque – temp. limit to 120 °C
Elastomer materials:	FPM, PTFE other materials on request

Proven hydraulics – TG MAG pumps utilize proven TopGear series technology for high reliability.
Magnetically coupled pumps – the closed pumping system ensures clean, safe operation without leakage of hazardous, toxic, or expensive liquids.
Unique forced circulation and cooling system – the patented integrated circulation system in the intermediate cover guarantees cooling and lubrication of the magnetic coupling and sleeve regardless of operating pressure or liquid viscosity.
Large distance between the inner magnet and the containment shell – minimized friction when pumping highly viscous liquids ensures reduced heat generation and long-lasting operation. Sleeves made of special silicon carbide can handle low viscosity liquids and are extremely resistant to abrasion.
Containment shell between magnets made of Hastelloy C4 – the chemically resistant shell ensures reduced eddy current losses, increases efficiency, and minimizes temperature rise. Safe operation for a long time.
Bushing protection system – protects both the outer and inner magnets from operating with a damaged containment shell caused by bushing failure. No risk of leakage or contamination.
Monitoring options – possibility of installing temperature, pressure, and vibration sensors to minimize operating costs.
Heating jackets and safety valves – heating jackets ensure safety during pump start-up and shutdown. Pump heating can be done with steam or thermal oil.
Easy maintenance – possibility of disassembly and access to the pump from both the front and the rear.
High level of interchangeability with the TopGear GM series – easier servicing and fewer spare parts in stock.
Design for use in potentially explosive atmospheres – compliant with ATEX Directive, category II 2G.

1. Pump Casing

horizontal line connections above the center line,
several PN flanged connections available,
possibility of connecting large diameter pipes,
pressure gauge connections on both flanges,
plug for filling, venting and drainage,
integrated feet under the pump casing,
free thermal expansion towards the rear,
lower pipeline velocity and pressure losses,
good NPSH properties,
liquid remains in the pump until the next start,
facilitated maintenance.

Front Access Module

2. Cover with Gear Pin

large recesses at the inlet and outlet,
fixed gear pin thanks to press-fit,
several pin material options,
axial liquid inlet relative to the gears improves NPSHr properties,
possibility of selecting appropriate gear pin materials for a given application.

“S” or “T” type heating jacket mounted on the cover (optional)

Additional front cover with heating jacket with several types of connections:

steam-powered version with threaded connections (“S” type),
thermal oil powered version with flanged connections (“T” type),
heats the pump casing, internal elements and the relief valve body.

3. Gear with Sleeve

unique tooth profile,
large gear pin and sleeve diameter,
possibility of using low and high viscosity media,
possibility of hydrodynamic lubrication by the pumped liquid to reduce wear of the sleeve and gear pin,
possibility of selecting appropriate materials needed for a given application.

Rear Access Module

4. Impeller and Pump Shaft

rotor shaft machined in one piece,
construction materials: carbon steel or stainless steel,
unique tooth profile,
high safety margin in case of mechanical failure,
reduced bearing forces and low noise level,
possibility of choosing corrosion-resistant material.

5. Bearing

compact, pre-assembled bearing set,
bearings lubricated by the pumped medium,
cooling and lubrication system integrated in the bearing system,
no adjustment shims or axial bearing clearance adjustment required,
the use of a wear-resistant shaft sleeve protects the shaft,
bearing load reduced thanks to the compact design and hydraulic balancing.

6. Bearing Bracket

possibility of exchanging elements with TG GM series pumps with double mechanical seal,
additional support under the bearing bracket relieves the pump feet and enables the pump to be driven by a belt drive,
maintenance-free,
anti-spark safety bearing prevents the outer magnetic rotor from hitting the bracket in case of ball bearing failure,
possibility of installing a PT100 temperature sensor,
additional protection of bearings against water and contamination thanks to the labyrinth seal design.

7. Magnetic Coupling

small dimensions and minimized hydraulic friction losses inside the coupling,
good thermal stability of SmCo magnets allows for safe operation at temperatures up to 250 °C,
magnets protected against corrosion from the pumped medium,
large gaps minimize hydraulic friction losses and make the magnetic coupling suitable for high viscosity media,
easy assembly and disassembly.

8. Intermediate Cover

compact design combined with a bearing set,
integrated circulation pump,
available in carbon steel or stainless steel versions,
various heating options.

Performance curves

We provide a wide selection of equipment used across all industry sectors, both in small and large enterprises. We offer professional devices for applications in:

hygienic sectors (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed foods, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, leather tanning).

The bitumen industry focuses on the production, processing, and application of bitumen – including the manufacture of asphalt emulsions, modified bitumens, waterproofing masses, and more. Due to the nature of the material, the bitumen industry requires advanced technologies and specialized equipment to handle substances with high viscosity and extreme temperatures.

We offer a wide range of equipment, such as pumps and mixers, that enhance the efficiency and quality of production processes in the bitumen industry. By applying modern Tapflo solutions, it is possible to achieve bitumen products of the highest quality that meet the strict market requirements. By choosing our solutions, you can significantly increase the efficiency and safety of processes in your production facility.

The chemical industry is a very large and important sector of the economy, encompassing all types of enterprises that manufacture their products using chemicals.

At Tapflo, we provide modern industrial solutions that streamline manufacturing processes and improve chemical production efficiency. We understand that handling chemicals requires the use of the highest quality equipment, and that is exactly what we deliver. Our motorers ensure the selection of devices suitable for every type of chemical, including pumps, valves, mixers, and filters tailored to the specific medium. The highest quality of Tapflo equipment guarantees safety, accuracy, and optimization of production costs.

The household chemical manufacturing industry must continuously evolve to meet market demands and environmental standards by implementing modern technologies. The production process in the chemical industry, including cleaning agents, detergents, bleaches, and other products, is complex. Every manufacturer must use precise machinery to ensure quality, safety, and the highest efficiency of their installations.

We offer a range of equipment adapted to the challenging conditions of chemical production. Using Tapflo machines ensures efficient, safe, and environmentally friendly manufacturing.

We provide a wide range of equipment used across all industry sectors, both in small and large enterprises. We offer professional devices for applications in:

hygienic industries (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed food, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, tanning).

The electroplating industry plays a key role in the production of various metal components. Electroplating processes require the use of equipment designed to operate in aggressive environments – with chemicals, acids, or alkalis.

Our offer includes electroplating pumps, valves, filters, and mixers, whose design and reliability enable the production of the highest quality metal coatings. We provide equipment used in industries such as metallurgy, electroplating, and paint finishing.

The cosmetics industry is a dynamically growing sector where production quality and efficiency are of paramount importance. Achieving these goals requires modern and reliable equipment such as pumps, mixers, valves, and homogenizers.

Thanks to the variety of available products, Tapflo can tailor flow solutions to the specific needs of customers in the cosmetics industry. Our technologically advanced machines play a fundamental role in production processes, ensuring high quality of cosmetic products. We guarantee precision, efficiency, and safety, which translate into superior product quality and consumer satisfaction.

We provide a wide range of equipment used across all branches of industry, both in small and large enterprises. We offer professional devices for applications in:

hygienic sectors (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed food, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, tanning industry).

We provide a wide selection of equipment used across all branches of industry, both in small and large enterprises. We offer professional devices for applications in:

hygienic sectors (beverages, confectionery, pharmaceuticals and cosmetics, fish processing, dairy, brewing, oils, fats, processed foods, and others),
industrial sectors (wastewater treatment plants, paper industry, surface treatment, chemical processes, mechanical industry, paint and coatings industry, tanning industry).

Pumps and equipment for food production play a key role in ensuring efficiency, hygiene, and safety of manufacturing processes.

Investing in high-quality equipment pays off by improving product quality, increasing productivity, and reducing operational costs. By choosing the right food-grade pumps, mixers, or homogenizers from Tapflo, food industry companies can meet market challenges and deliver products of the highest quality to consumers. Every Tapflo device is characterized by compliance with strict sanitary standards such as EHEDG, 3-A, FDA, and USP VI.

The pet food industry is a dynamic segment of the food sector, specializing in the manufacturing of balanced nutrition for dogs, cats, and other domestic and farm animals. Tapflo supplies modern equipment for pet food production facilities, ensuring the highest levels of hygiene and operational reliability.

Our solutions handle a wide range of media consistencies – from liquid additives to dense feed masses – regardless of temperature or viscosity. Tapflo devices are designed for easy cleaning using CIP/SIP methods and comply with FDA and EHEDG standards. As a result, pet food production runs smoothly, safely, and with consistently high product quality.

Industry Sector

We present to you the full range of products we supply. The offerings here are aimed at users of various industrial applications. We invite you to explore our extensive portfolio, which includes pumps, heat exchangers, homogenizers, hygienic valves, filters, and a wide array of other solutions.

We provide comprehensive, professional, and above all reliable diaphragm pumps, centrifugal pumps, and other equipment that ensure safe and hassle-free liquid transport. Our forty years of experience and a qualified team of top specialists guarantee that the industrial equipment we supply successfully meets the expectations of even the most demanding clients. Our diaphragm, centrifugal, vortex, gear, dosing pumps, and many others find applications across various industry sectors.

One of the most universal pumps available on the market, compressed air-operated diaphragm pumps can be used in a wide range of applications to transfer almost any medium. Their simple operating principle and robust, compact design enable these pumps to meet the high demands of various industries.

Trouble-free dry running. Smooth flow control. Self-priming up to 5 m.
No electrical installation required. Few components. Compact and robust design. Oil-free air distributor.
Compressed air supply.

Due to changes in the way we think about our impact on the environment, we are proud to present EODD – Electric Diaphragm Pumps. The product follows a modern approach but is still based on the original diaphragm pump technology, which has proven to be very effective. We consulted with our customers, who expressed a need for the features and benefits of a traditional diaphragm pump, but with the added advantage of lower operating costs. The pump is powered by a high-efficiency electric motor (IE3 class) and there is no chance of hydraulic fluid leakage, as the pump simply does not need it.

A Filter Press Pump is a specialized type of pump designed to fill a filter press with a slurry or suspension from an external storage or disposal facility, typically used in solid-liquid separation processes, typically at high pressures reaching 24 bar.

Tapflo Filter Press Pumps are known for their robust construction, reliable performance, and ability to handle high-pressure applications with ease. They are equipped with a non-return valve to prevent backflow and are available in various materials to suit different process requirements. Air operated filter press pumps have the unique feature that when the filter press is full, they stop and no additional safety systems are required to shut down the pump (like in case of electrically operated filter press pumps).

Tapflo offers a wide range of centrifugal pumps made of stainless steel and PP and PVDF plastics, including horizontal or vertical pumps, as well as magnetically driven pumps. Available in hygienic and industrial designs, Tapflo centrifugal pumps are among the most versatile pumps currently available on the market. Selected pumps can be designed for safe contact with food and are also available in ATEX explosion-proof versions.

Hose pump is a type of positive displacement pump that can be used to pump a wide variety of liquids. Tapflo industrial hose pumps use the principle of peristalsis, whereby the deformation and compression of a soft elastomer hose allows the liquid to pass through the device.

Pumps of this type are the best solution for delicate, corrosive, abrasive or dry media, including those containing solid particles. The special design, in which only the hose comes into contact with the pumped product, reduces operating costs by reducing wear on internal components and allows operation in very demanding conditions.

Tapflo submersible pumps are designed for a wide range of applications. We offer pumps for draining flat surfaces, sewage, spring water, rainwater and groundwater, as well as sludge and sediments containing solid particles. All our submersible pumps provide the performance, reliability and ease of use you need when pumping liquids consisting mainly of water. A submersible pump can be used as a permanent solution for draining water when a certain liquid level is reached, or as a mobile and easy-to-use drainage pump when unwanted water needs to be removed.

Tapflo gear pumps are characterized by their robust construction, ensuring high durability and extended service life. They feature a well-thought-out design with a unique tooth profile on the drive gear, reduced energy consumption with high efficiency, and smooth, pulsation-free media transfer.

Modularity allows for interchangeability of parts between different models within each series, as well as the possibility of dismantling the pumps from the front or rear. This also contributes to ease of maintenance and reduced downtime.

A wide selection of material designs, seal types (packing, mechanical, or lip seals), and additional options such as

The original design of the rotary lobe pump goes back to the early 30’s and has since then been further developed and improved. Rotary lobe pumps are easy to clean and have gentle product handling characteristics. They contain few cavities, which reduces the risk of bacterial growth and makes them particularly suitable for the transport of sensitive fluids – from glue to whole strawberries.

Applications: Food and Beverages, Pharmaceutical, Chemical, Cosmetics, Pulp & paper.

The series of dosing pumps includes: the range of dosing pumps includes mechanical diaphragm pumps, hydraulic diaphragm pumps, electromagnetic diaphragm pumps and piston pumps. Pumps from the following series can be used for precise dosing of various types of compounds needed to carry out chemical reactions. Their design allows them to work with high-pressure systems, while enabling very precise dosing. This series of pumps is ideal for combining into multi-head systems, where each head can pump a different medium and have an independent flow rate setting.

Mechanical diaphragm dosing pumps - D Series

Eccentric screw pumps for liquids with high viscosity or fragile content. With almost pulsation-free flow up to 110 m3 /h and pressure up to 48 bar.

The pump provides almost a pulsation-free flow, can handle high pressures and is at the same time very gentle on the liquid and its contents with excellent suction capabilities. Model DX complies with strict hygiene requirements in the food and pharmaceutical industry.

Electric or air operated drum and container pumps are lightweight, handy and very powerful devices for an economical and safe filling and transferring of thin to medium viscous media, neutral or aggressive, non-flammable or flammable substances out of drums and containers.

Drum pumps have a very wide range of applications in the food, chemical, cosmetic, electroplating, petrochemical, and machine production industries.

IBC containers and drums are widely used in industry – they are the simplest way to store and transport various liquids. Since many of these liquids must be mixed before use in the process, we offer a range of dedicated industrial mixers. These are simple, yet robust and safe to operate, high-quality devices. Designed and configured for common industrial applications, they enable mixing directly in the IBC container or drum. Thanks to the use of mixers, intermediate tanks can be omitted and the process becomes faster and more economical.

Tapflo hygienic valves are high-quality components made of forged 304L and 316L stainless steel. All valves in our range are serialised to ensure full traceability, even 304L valves, and are manufactured in a TÜV NORD ISO 9001:2015 approved production process. The valves are 3A and FDA certified for use in the food and dairy industries. They also meet the pharmaceutical industry’s requirements for USP Class VI elastomers.

Our offer is complemented by pump units, industrial trucks, acoustic and thermal shields, and SKID technological systems. Bearing in mind the diverse needs of our customers, we offer not only a standard range of products, but also customised solutions tailored to your requirements. Our range includes pump units of various power ratings and sizes. We are able to supply motors and gear motors for every standard pump available in our offer. If you cannot find a solution that meets your expectations in our offer, we will be happy to design and implement a customised solution.

Pumps

Other Equipment

We provide comprehensive solutions for the chemical, food, pharmaceutical, cosmetic, and paper sectors. Our products are fully safe and environmentally friendly, and they meet the strict quality requirements imposed by both national and international standards and directives. For this reason, we collaborate only with partners who share similar values in their operations. Among our partners is Doseuro, offering dosing pumps in three main versions: plunger pumps, hydraulic diaphragm pumps, and mechanical diaphragm pumps. A wide selection of specialized pumps is also made possible through cooperation with companies such as Jessberger, Hydra-Cell, CDR, SPX FLOW Johnson Pump, Steinle Industriepumpen GmbH, PCM, and APV.

Pomac Pumps are high-quality, hygienic pumps widely used across industries such as food & beverage, pharmaceuticals, cosmetics, and chemicals. Designed in the Netherlands, these pumps are known for their reliability, durability, and efficient handling of a wide range of liquids — from thin, water-like fluids to highly viscous products. With a focus on hygienic design, easy maintenance, and energy efficiency, Pomac pumps provide a versatile solution for processes that demand precision, cleanliness, and consistent performance.

The key elements that have contributed to the international success of Salvatore Robuschi, present on the market since 1935, are customer-oriented design and the technical and commercial knowledge of its employees. The main goal of Salvatore Robuschi is to become a reference brand for process pumps, designing “tailor-made” solutions for every need. The offer includes centrifugal pumps with closed or open impeller according to ISO 5199-2858, with vortex impeller with large free passage, as well as with channel impeller (closed and open). All these pumps are available in horizontal and vertical configuration.

Cipriani Harrison Valves has been expanding its specialist motorering, product and process knowledge for over 40 years to meet the most demanding customer needs for hygienic industrial valves. Cipriani Harrison Valves is an ISO 9001:2015 certified company, certified by TÜV NORD.

Adhering to international standards such as ASME BPE, EHEDG and 3A, Cipriani Harrison Valves successfully supplies the highest quality hygienic valves and components to the food, dairy, wine, brewing, cosmetics, biopharmaceutical and other related industries.

In post-war Japan, the infrastructure for water supply and treatment plants was underdeveloped, and poor-quality drinking water spread many infectious diseases. Toshio Yamada wanted to change this, so in 1965 he began producing equipment for chlorine disinfection at his home in Ikuno-cho, Asago City, Japan. This became the starting point for what would later become the pump manufacturer Tacmina. In 1965, the first dosing pump, the “N-Feeder S-Type,” was launched, and today Tacmina is a well-known global supplier of dosing pumps and pulsation-free diaphragm pumps of the highest quality.

The Doseuro brand combines solid technical knowledge, gained through many years of experience in the dosing field, with a commercial understanding of the changes in this field and particular attention to our customers’ requirements.

Doseuro pumps are distinguished by high reliability achieved through continuous product development, updating production techniques, quality control and rigorous testing at all stages of production. Each metering pump model has been carefully designed, built and tested to ensure long life and usability.

The history of CDR dates back to the pre-World War II era. In the early 1950s, Ferdinando Abordi acquired “ARI Pompe” – a family business whose production was based on cast iron pumps for domestic, agricultural and industrial use. In the mid-1960s, the evolving market demanded a new and sophisticated product, and CDR transformed to fulfill special customer orders. The production of stainless steel and special alloy pumps was started. Subsequently, the production of horizontal and vertical centrifugal pumps, compliant with DIN 24256 standards for the chemical industry, was implemented.

Jessberger is a family-owned company based in Ottobrunn near Munich. The company specializes in the production of electric and pneumatic drum and container pumps, vertical and horizontal screw pumps, dosing pumps for high-viscosity media, hand pumps and a wide range of accessories such as flow meters, nozzles, etc. Jessberger’s unparalleled reputation in the field of drum pumps is the result of personalized and professional support and maximum flexibility in all areas and direct contact with customers. Jessberger attaches the greatest importance to strict quality control.

Nova Rotors is an Italian manufacturer specializing in progressive cavity pumps, twin-screw pumps, and centrifugal pumps. Founded in 1990, the company has built a strong reputation for innovation, reliability, and customization, offering solutions for industries such as wastewater treatment, food & beverage, chemicals, and pharmaceuticals. With a focus on efficiency, durability, and hygienic design, Nova Rotors pumps are trusted worldwide for handling a wide variety of fluids — from low-viscosity liquids to highly viscous and abrasive products.

EMEC is an Italian manufacturer of dosing and control systems, specializing in high-quality solenoid and motor-driven dosing pumps, controllers, and accessories for water treatment and industrial applications. Founded in 1982, EMEC has become a trusted global supplier known for precision, reliability, and innovation in chemical dosing technologies. With a strong focus on research and development, EMEC provides tailored solutions for sectors such as water treatment, swimming pools, agriculture, and industrial processes.

Partners

We specialize in designing unconventional solutions tailored to the most demanding needs of our clients. We do this by introducing additional functionalities to the offered devices, increasing their mobility, adjusting their dimensions or introducing advanced safety and control systems. We offer all solutions that increase the comfort and safety of work, such as stationary and mobile systems for unloading media from tanks, barrels, IBC containers, etc.

Our mission is to provide technical solutions that guarantee proper functionality and stable operation in any environment.

Unloading drums filled with highly viscous liquids has never been easier. Our High Viscosity System (HVS) is designed to simplify this task, offering automated efficiency and exceptional product-saving capabilities. With HVS, you’ll experience a smooth unloading process, allowing you to focus on other critical tasks while achieving up to a 99% product removal rate. Say hello to effortless drum unloading with HVS.

Simplify the unloading of highly viscous liquids with our High Viscosity System Quattro-type (HVS Quattro). It is designed for high-volume applications where multiple drums (typically four) are stored on pallets. The HVS Quattro allows you to switch between the drums easily, thanks to our revolutionary articulated arm. Experience an impressive product removal rate of up to 99% which will reduce your production costs.

Unloading drums containing highly viscous liquids has become more efficient and precise with our High Viscosity System Flexi-type (HVS Flexi). This system simplifies the task, providing automation and effective product-saving features. The HVS Flexi ensures a smooth unloading experience, allowing you to concentrate on other important tasks while achieving an impressive product removal rate of up to 99%. It is suitable for applications with low to moderate volumes, such as supplying filling or packing lines directly.

Experience efficient and safe tank emptying operations with our flexible Unloading System. Designed to handle IBCs (Intermediate Bulk Containers), Mauser, Goodpack or Bag-in-Box® containers, totes, drums, barrels, and various other storage vessels, this system efficiently manages both low and high-viscosity products across a wide range of industries. Using a reliable suction lance mechanism, its innovative design and customizable control system ensure optimal performance while maintaining the highest industrial safety standards.

SLES* is an organic chemical compound with excellent cleaning and foaming properties. For this reason, it is commonly used in the production of cleaning agents, soaps, shampoos, and household chemicals. SLES is typically supplied to manufacturers of these liquids at a 70% concentration, and due to its physical properties, such a concentrated solution is difficult to process and must be diluted below 27% before being used in the production line. Our system enables continuous dilution with maximum efficiency and safety, reducing costs for the company in the long term.

Achieving precise mixing of ingredients to obtain the desired final product—while maintaining strict proportions, accuracy, and sequence—poses a major challenge for industrial manufacturers. The mixer was created specifically for this purpose. It is based on a system for diluting concentrated ingredients such as SLES. However, it has been designed in a modular way, allowing us to easily configure the system to meet actual production needs. The ingredients of the final product can be drawn from various types of tanks.

Precise and repeatable filling operations with our versatile container filler. Designed for applications requiring high accuracy and compatibility with various containers and products, from small-volume containers to large industrial drums. Filling accuracy below 0.1% ensures optimal production line performance while maintaining the highest industrial and sanitary standards. Suitable for both high- and low-viscosity products.

Responding to the individual needs of users, Tapflo offers the delivery of compact, automated process systems on a “turnkey” basis. Every demand for a non-standard pumping system is an opportunity for us to create a unique, tailor-made SKID system. Thanks to our extensive design and manufacturing capabilities, we provide solutions developed with specific functionality in mind. We offer virtually unlimited possibilities for the development of pumping units, both in terms of mechanics and automation.

Tapflo presents a series of chemical unloading systems designed for every branch of industry where liquids need to be stored, transferred, and dosed. Our solution, based on the use of a diaphragm pump, is suitable for handling viscous liquids, chemically aggressive substances, as well as those containing solid particles.

Several tank sizes can be combined with pumps in various configurations. Additional options allow the system to be tailored to specific needs. In this way, we have created the simplest and most versatile pumping solutions on the market.

saThe use of protection systems ensures not only efficient but also safe operation of diaphragm, lobe, gear, screw, and centrifugal pumps. Protection systems detect hazardous situations and respond immediately, for example by automatically shutting down the device. The pump protection solutions offered by Tapflo operate based on dedicated sensors. These include media presence sensors such as optical indicators, as well as tuning fork and capacitive sensors designed to detect the presence of a medium or to monitor its level in tanks or pipelines.

Tapflo presents a series of hygienic covers designed specifically for diaphragm pump users. The stainless steel housing is durable and sealed, effectively isolating the pump from its surroundings. Filled with a dedicated insulation mat, the hygienic covers are an ideal solution for acoustic or thermal separation of the pump. Tapflo industrial covers combine user-friendly design with high-quality materials. Built to last, they will serve reliably for years in nearly any application.

System type

Magnetic seal gear pumps – TGMAG series

Technical data

Typical applications

Product features

Operation principle

Modular design

Construction

Options, accessories

Operation principle of relief valves

Performance curves

RELATED PRODUCTS
