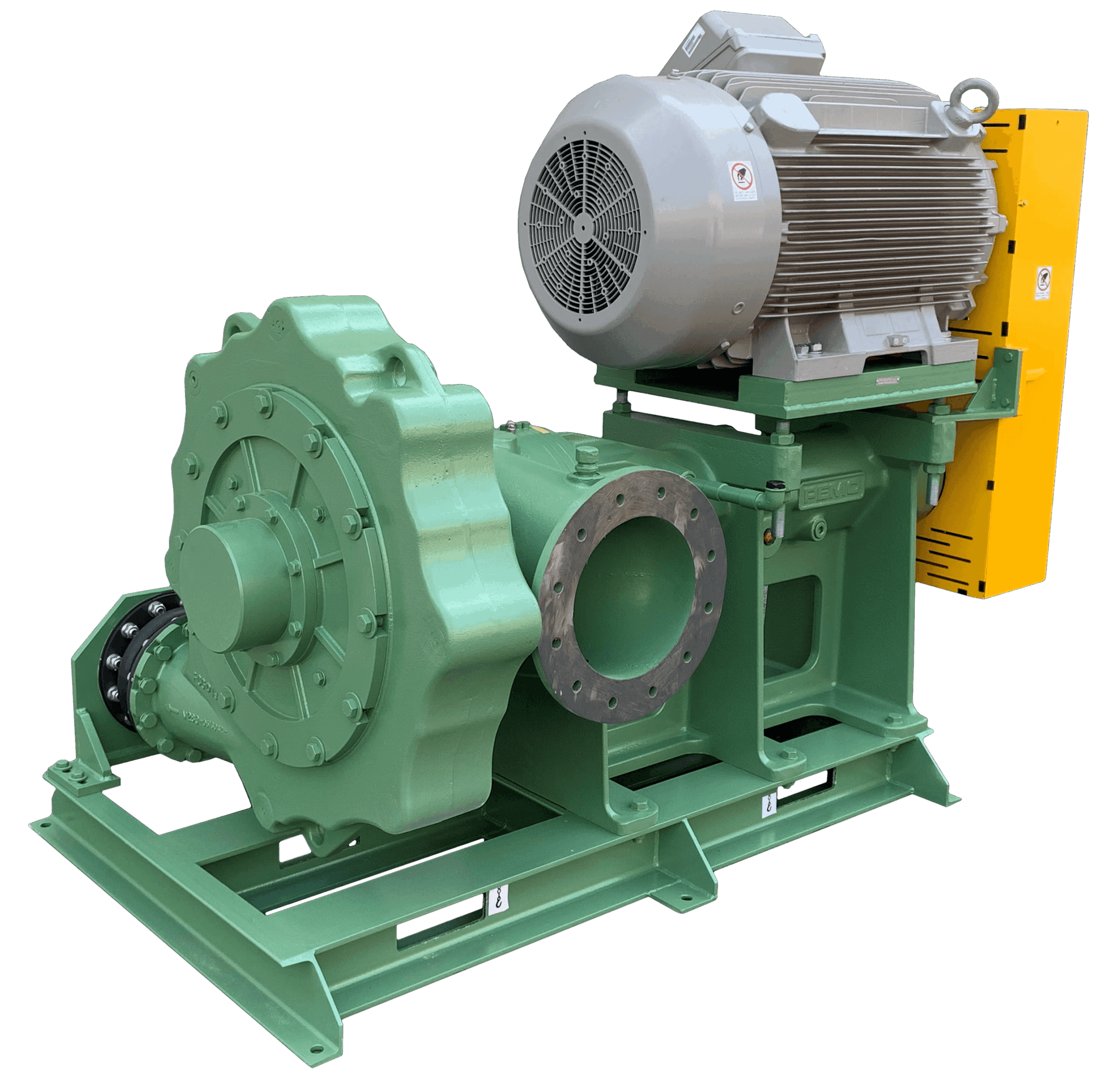

Horizontal pumps – AO/TD, AO/AB, AO/AB/DC-TC series

Horizontal pumps, rubber lined or hardalloy design, are the hardest and most rugged in the industry today. Features:

Type of seal: Double Elastomer Bellow mechanical seal in back to back configuration
Bearings: Oil Lubricated, reinforced design for higher bearing life in the most severe conditions
Low maintenance
Pump-motor coupling: V-belts or Flexible coaxial joint
Custom built: According to customer specifications
Not self-priming: the inlet of the pump must be always flooded

Power Plants and FGD
Mining, Quarries and Aggregate materials washing
Coal & Slurry Transfer
Mill Scale & Ash Pits of routine service items
Seawater Sand Slurry
Lime Slurry
Underground Mines
Pulp & Paper
Chemical Industry

BROCHURE

Horizontal pumps, rubber lined or hardalloy design, are the hardest and most rugged in the industry today. Features:

Type of seal: Double Elastomer Bellow mechanical seal in back to back configuration
Bearings: Oil Lubricated, reinforced design for higher bearing life in the most severe conditions
Low maintenance
Pump-motor coupling: V-belts or Flexible coaxial joint
Custom built: According to customer specifications
Not self-priming: the inlet of the pump must be always flooded

Pump series

AO/TD series

Designed for heavy duty slurry and /or acid applications. Suitable for pumping acid and liquids with high concentrations of abrasive particles.

Capacity: 5 to 1,500 m³/h
Head: 30 m
Max discharge pressure: up to 5 bar

AO/AB series

Designed for slurry and/or acid applications. Suitable for pumping acid and liquids with high concentrations of abrasive particles. Not recommended where particle size is higher than 2mm.

Capacity: 5 to 1,500 m³/h
Head: 50 m
Max discharge pressure: up to 7 bar

AO/AB/DC-TC series

Multi Stage versions suitable for pumping liquids with high concentrations of abrasive particles in applications where the required discharge pressure is up to 20 bar (290 psi), not recommended where particle size is higher than 2mm.

Capacity: 5 to 1,500 m³/h
Head: 150 m
Max discharge pressure: up to 20 bar
