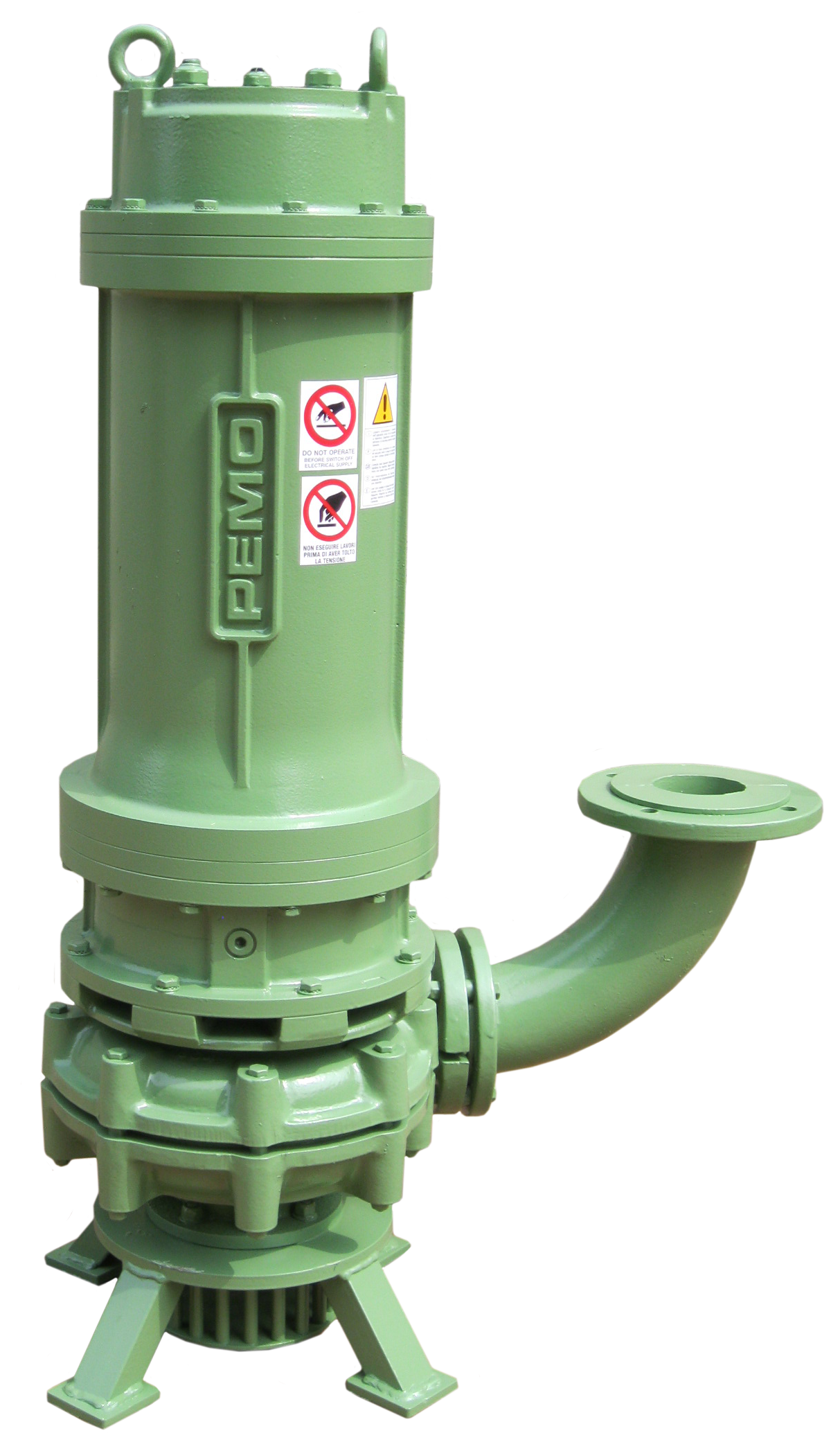

Rubber lined submersible pumps

All metal, the PEMO submersible pumps are designed with long life and low maintenance as a priority.

The wetted parts of the pump, (volute(s), impeller(s), inlet flange(s), and shaft sleeve(s) are made of an extremely hard iron alloy called, “Hardalloy” which has a hardness rating of over 800 HB.

The hardness of the pump components is the key to reliable performance in rugged applications ranging up to 70% solids, with max size of particles up to 20mm in diameter.

Rubber lined versions with Hardalloy-impellers
Designed for heavy-duty slurry applications with rubber lined casings
Power ranging from 1 to 100 hp, and speeds from 735 to 3,500 rpm
Capacities up to 1,585 gpm (360 m3/h)
Maximum available pressures from 88 to 103 psi (6-7 bar)
Mechanical seals are of Silica or Tungsten Carbide
Bearings are grease lubricated to deliver long-life
Thermal probes (for the control of motor temperature) and oil level probes (for slurry leak detection inside the oil chamber)
Electric device for the analysis of the signals from the thermal probes

BROCHURE
