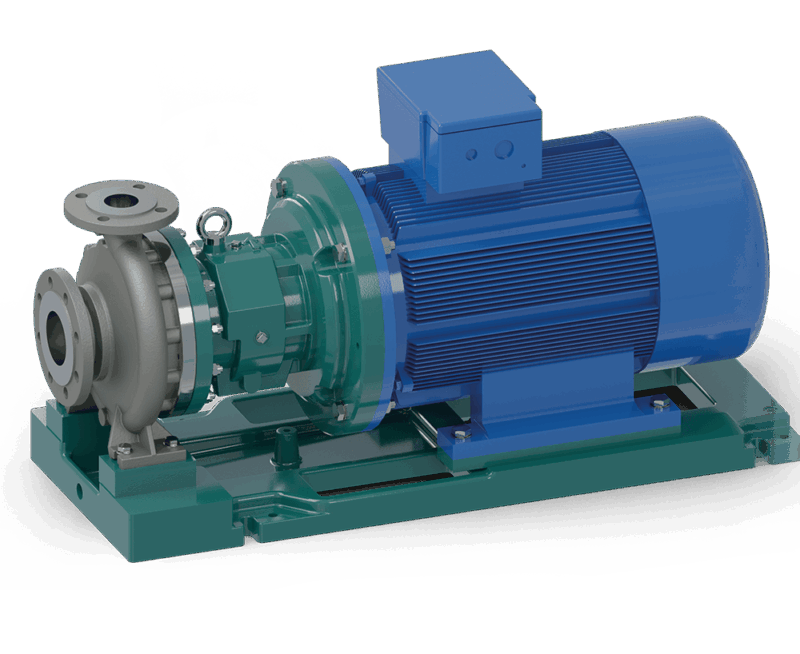

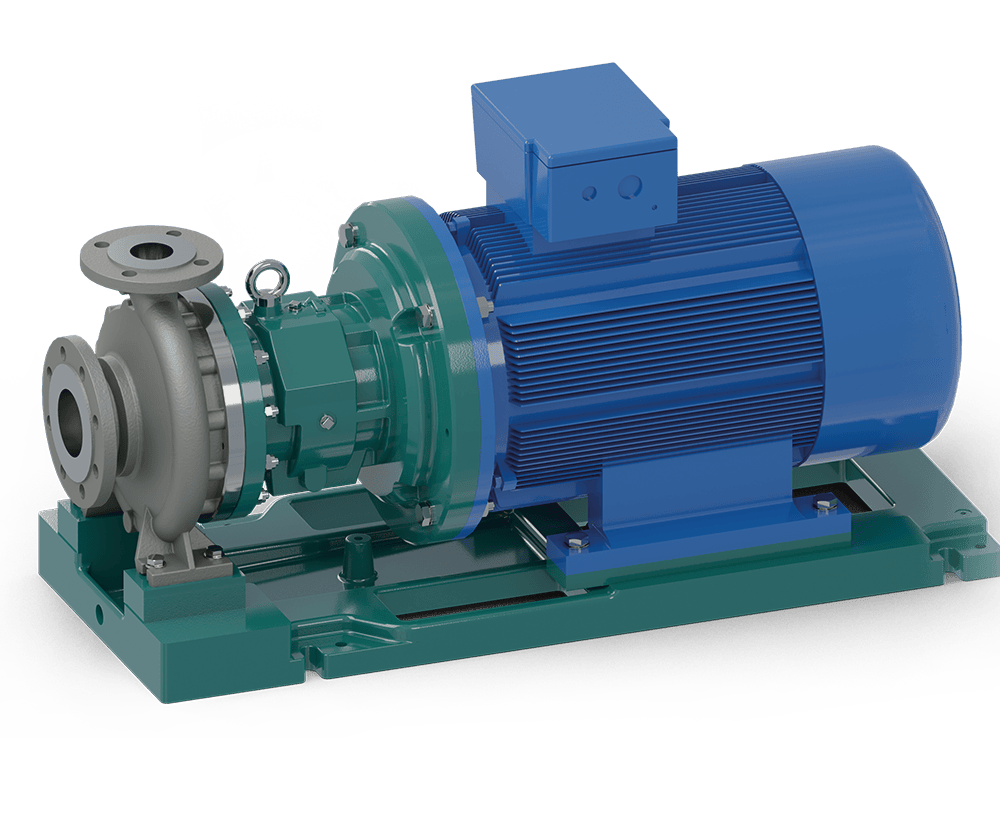

Magnetic drive centrifugal pumps – UTS EVO

Thanks to the magnetic drive technology, the rotating motion is transmitted without any mechanical contact, simply by exploiting the attraction of the magnetic fields. Without any joint or sealing, it is achieved a complete liquid containment, eliminating risks of dangerous leakages: the safest system for the operator, as well the most respectful for the environment.
Versatility: suitable for handling aggressive, toxic and hazardous liquids (low viscosity, clean or slightly contaminated) in the chemical, petrochemical and pharmaceutical industries, where the need of high safety standards is the first requirement.
Reliability: the UTS are made by stainless steel. AISI 316: on bare shaft execution, the pump is also equipped as a standard with reliable oil lubricated bearing bracket, especially developed to be suitable even under heavy duty service.
Design: UTS range shares the same hydraulic design with the UCS series (mechanical seal pumps) which have been developed focusing on Industry’s requests.

Metallic Magnetic drive Horizontal – Single Stage
Materials: AISI 316 (1.4408)
Long Coupled (UTS) and Close Coupled (UTS-B) execution
Maximum permissable fluid temperature: -100°C/+300°C
Maximum flow-rate @ 2900 RPM: 300 m³/h

Distillation processes
Raw chemical processes. Operation h24
Fine chemistry processes
Thermoregulation
Tank loading / Unloading
Pharma-Chemical Industries

BROCHURE

Technical data

SHAFT SEAL TYPE:	Magnetic drive
DESIGN:	Sub-EN 22858 – ISO 2858
STANDARD:	ISO 5199
CASING AND IMPELLER MATERIALS:	AISI 316 (1.4408)
IMPELLER TYPE:	closed
EXECUTION:	UTS long-coupled UTS-B : close-coupled
MAXIMUM RATED PRESSURE @ 20°C:	PN 10 for ETS 30 e ETS 40; PN16 for ETS 50 and ETS 70
FLANGES:	UNI 1092-2 (ISO 7005-2) PN16RF drilling slotted ANSI150RF
MAXIMUM RATED PRESSURE @ 20°C:	PN 16
MAXIMUM PERMISSABLE FLUID TEMPERATURE:	-100°C/+300°C
MAXIMUM FLOW-RATE @ 2900 RPM:	300 m3/h
MAXIMUM HEAD @ 2900 RPM:	100 m
ALLOWABLE MEDIUM VISCOSITY RANGE:	1 cSt – 60 cSt

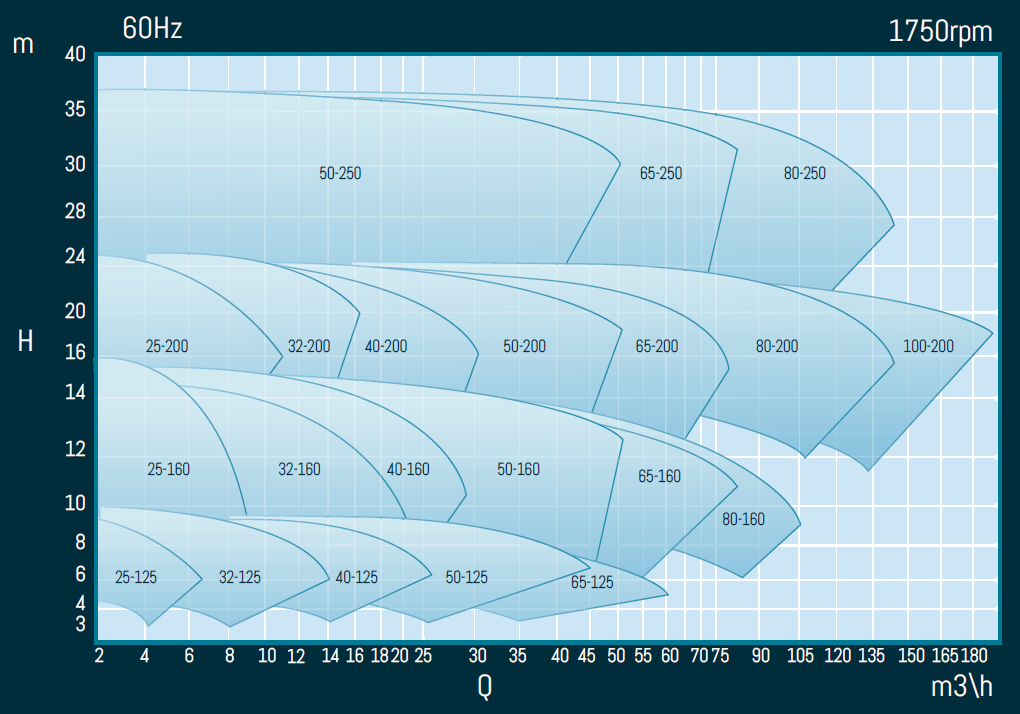

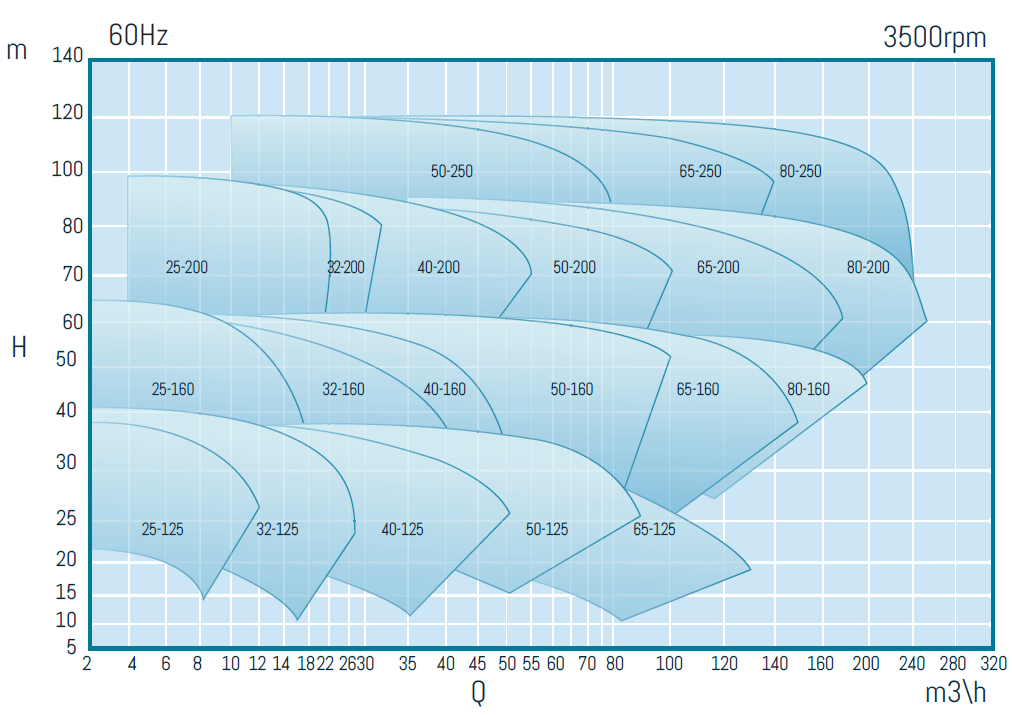

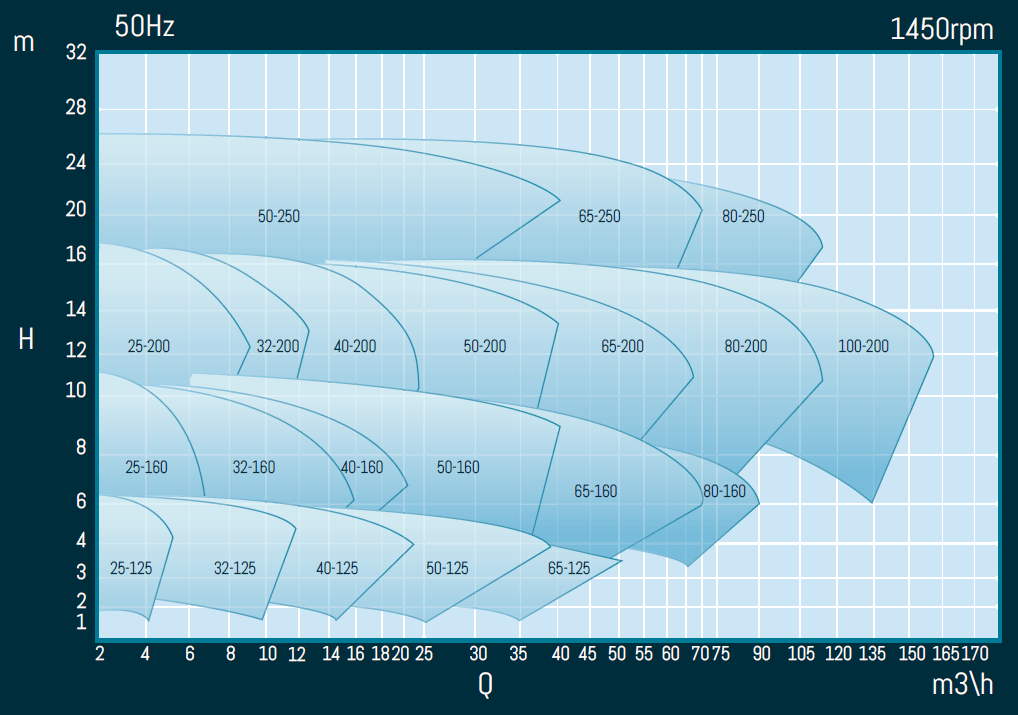

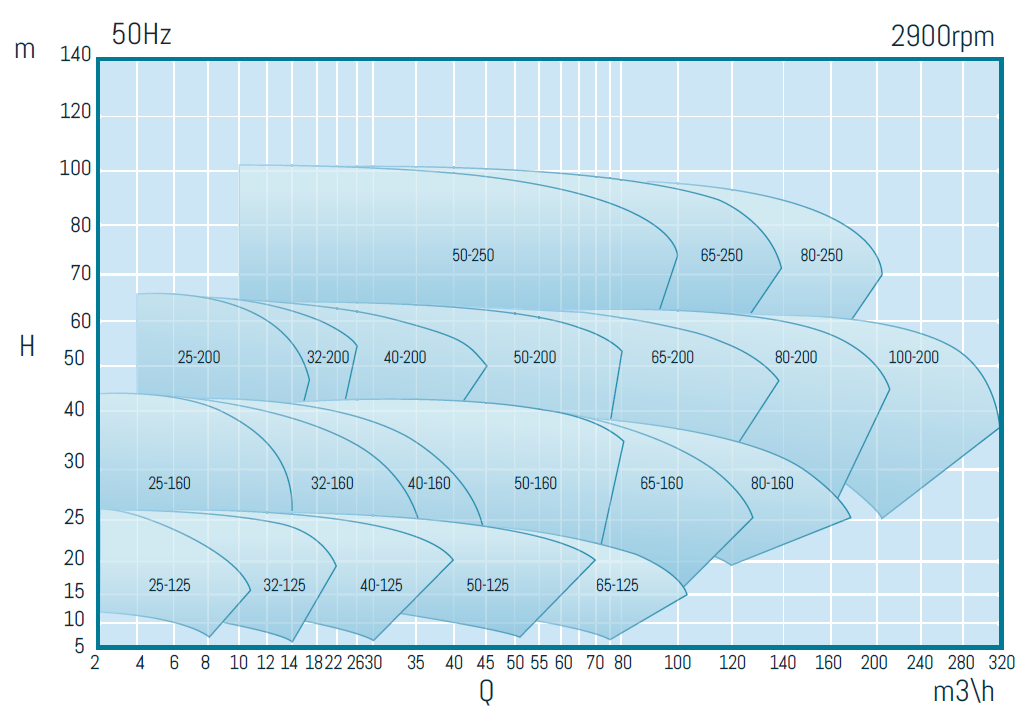

Performance curves

Technical data

SHAFT SEAL TYPE:	Magnetic drive
DESIGN:	Sub-EN 22858 – ISO 2858
STANDARD:	ISO 5199
CASING AND IMPELLER MATERIALS:	AISI 316 (1.4408)
IMPELLER TYPE:	closed
EXECUTION:	UTS long-coupled UTS-B : close-coupled
MAXIMUM RATED PRESSURE @ 20°C:	PN 10 for ETS 30 e ETS 40; PN16 for ETS 50 and ETS 70
FLANGES:	UNI 1092-2 (ISO 7005-2) PN16RF drilling slotted ANSI150RF
MAXIMUM RATED PRESSURE @ 20°C:	PN 16
MAXIMUM PERMISSABLE FLUID TEMPERATURE:	-100°C/+300°C
MAXIMUM FLOW-RATE @ 2900 RPM:	300 m3/h
MAXIMUM HEAD @ 2900 RPM:	100 m
ALLOWABLE MEDIUM VISCOSITY RANGE:	1 cSt – 60 cSt

Performance curves
