Sanitary self priming liquid ring pump – SP-LR series

SP-LR series. Sanitary self priming liquid ring pump

BROCHURE

Sanitary self priming liquid ring pump – SP-LR series

SPEAK TO US TODAY +27 31 701 52 55

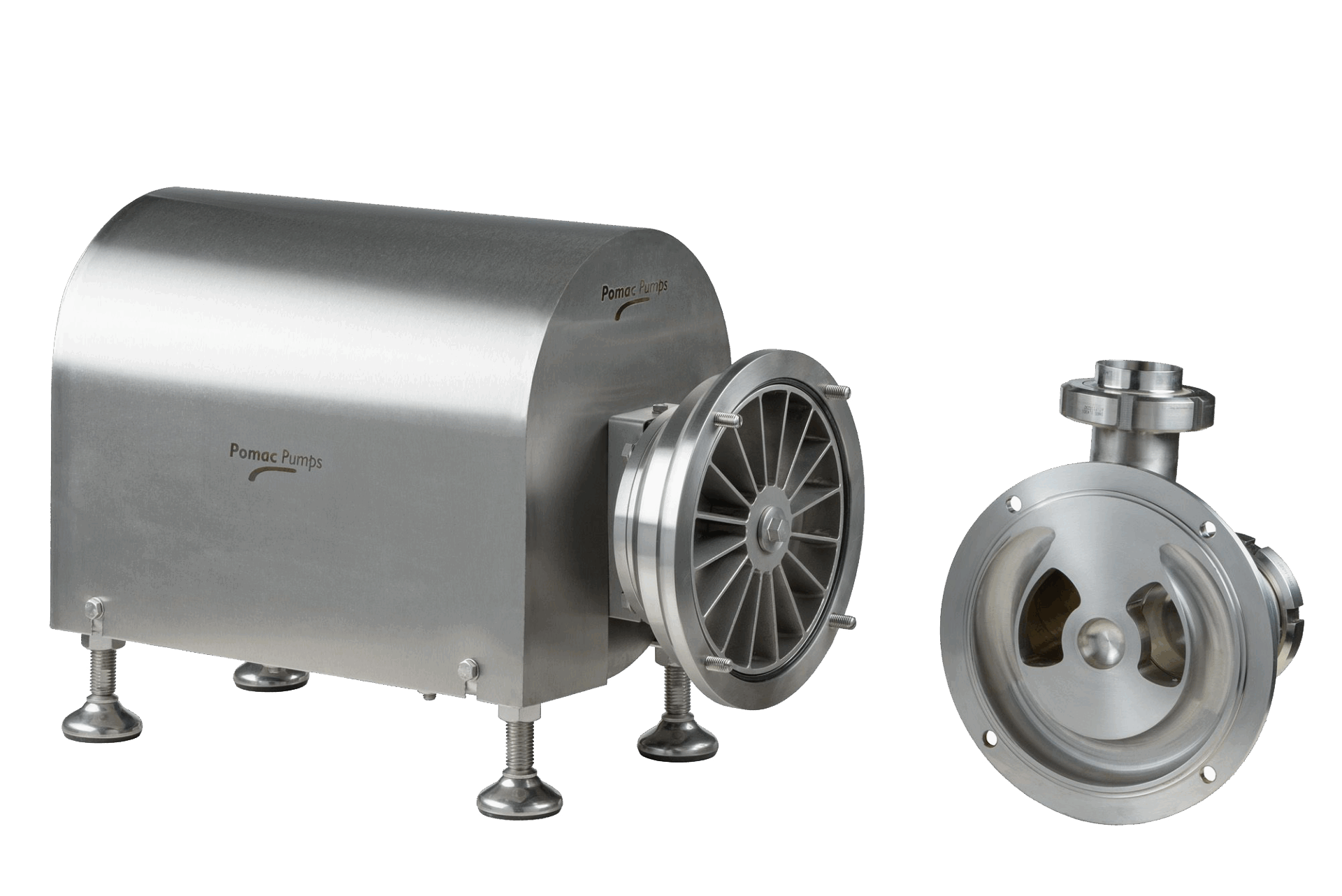

The SP-LR Sanitary Self Priming Liquid Ring Pump has been produced specifically for hygienic and sanitary applications within the food, chemical and pharmaceutical industries for liquids which contain air or gases.

The series is fully compliant with all relevant standards and has been designed with a heavy emphasis on compactness, robustness, cleanability & low maintenance costs.

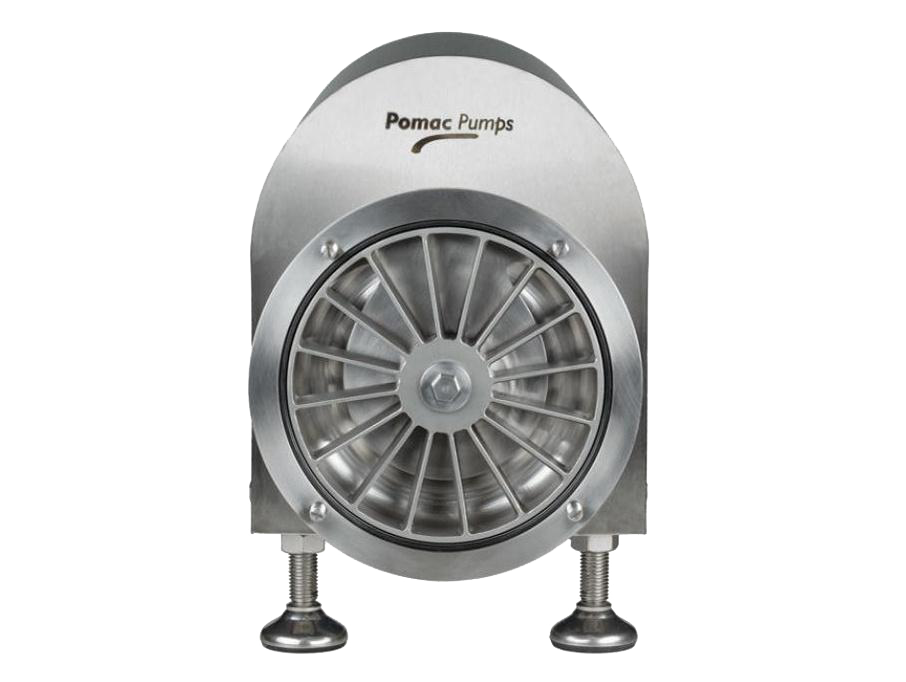

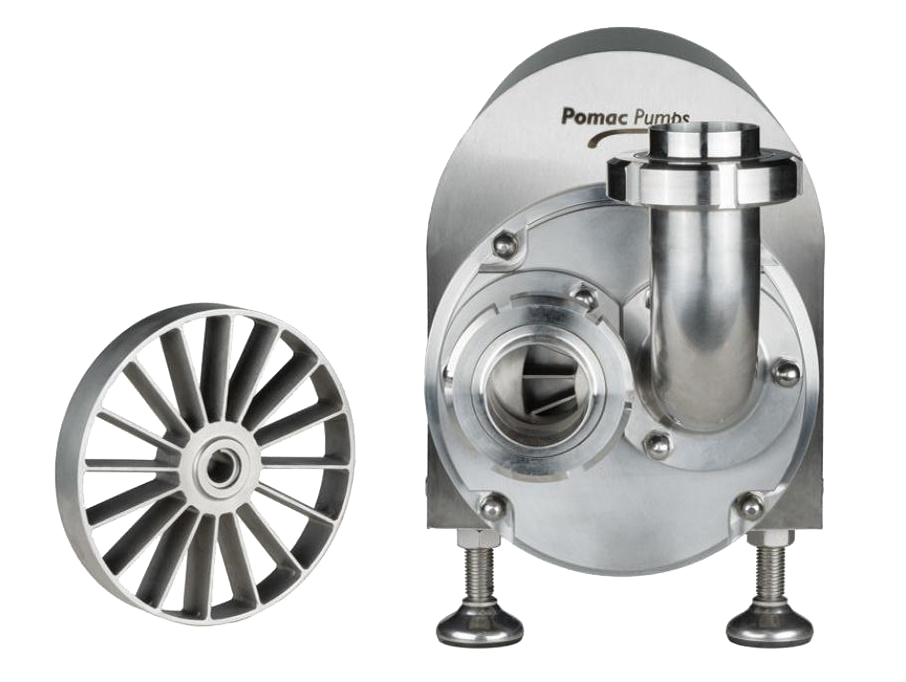

The open impeller, which is dry mounted, ensures optimal cleaning of the shaft and sealing chamber and the applied O-Ring minimises liquid contact whilst ensuring optimal cleaning of the contact faces of the seal.

Max Capacity: 60 m³/hr
Max Pressure: 4 Bar
Max Viscosity: 500 cPs
Max Temperature: 140ºC
Max Suction Lift: 6-8 mm

All liquid contact parts of the SP-LR pumps are compliant with the relevant standards. The open impeller ensures an optimal cleaning of the shaft and seal chamber. The impeller is dry mounted.

The applied “O”-ring constructions are designed to minimize the liquid contact and at the same time to provide an optimal cleaning of the contact faces

BROCHURE

The series is fully compliant with all relevant standards and has been designed with a heavy emphasis on compactness, robustness, cleanability & low maintenance costs.

Overview

All pumps within this range are suitable for being CIP cleaned. The range currently consists of 2 pump sizes, with 4 more in development. Capacities available are up to 60 m³/hr & 4 Bar max deliverable pressure with connection sizing ranging from 2” to 2½” in a variety of types. The pump is entirely machined from cast Stainless Steel AISI 316L with a surface roughness

Upon request, the pumps can also be delivered in Supra SS 316L and Hastelloy C22. Various O-Ring and Mechanical Seal variants can also be applied to ensure that these pumps meet the requirements of almost any application.

As standard, the range is supplied in a close coupled configuration encased in a hygienic shroud with adjustable feet and the impeller is mounted by a balanced stainless steel stub shaft. Upon request they can also be provided in a bearing housing execution for high temperature applications or fitting with hydraulic motors.

Heating jackets & casing drains can also be fitted if required. Motors can be supplied in all efficiency, isolation, protection and voltage classes and they are also available in ATEX compliant executions and fitted with noise reduction measures.

Technical data

Max Capacity	60 m³/hr
Max Pressure	4 Bar
Max Viscosity	500 cPs
Max Temperature	140ºC
Max Suction Lift	6-8 mm
Connections	2” – 2½”
Connection Types	Couplings: DIN11851, DIN11864-1, SMS1145 Flanges: EN1092-1, DIN11864-2, ANSI Tri-Clamps: ISO2852, DIN32676, DIN11864-3 BSP & NPT threaded
Shaft Sealing	Single, double quench/flush, Inner and outer, EHEDG. according to DIN24960
Sealing Materials	carbonl/CrM, carbon/SiC, SiC/SiC, Tc/Tc
Elastomer Materials	EPDM, Viton, NBR, Teflon, KALREZ, e.g. according to FDA
Wetted Parts	AISI 316L (AISI 316L Mo+Ni or Hastelloy CX2MW N26022 upon request)
Surface Roughness	‹0.8 Micron (Std), ‹0.5 upon request (Mechanical & Electro-Polished)
Drives	Standard: IEC, IE2, B3/B5, IP55, isol cl. F, PTC Optional: IE3, ATEX, noise reduction

Mechanical seal

All mechanical seals are supplied to EHEDG & FDA-CFR 21 standards as well as being DIN 24960 (apart from build-In length) compliant. They are available in the following material combinations and variants:

Carbon/Silicon Carbide. Carbon/CrMo-Steel. Carbon/Ceramic. Hard Metal. Silicon Carbide/Silicon Carbide. Tungsten Carbide/Tungsten Carbide. Carbon/Metal

O-Rings are available in:

Viton, NBR, EPDM, PTFE

Variants:

S1 = Internal Single Mechanical Seal – Unbalanced
S2 = External Single Mechanical Seal – Unbalanced
B1 = Internal Single Mechanical Seal – Balanced
Q1 = Double Mechanical Seal with Quench – Unbalanced
Q12 = Double Mechanical Seal with Quench – 1 Side Balanced, according to EHEDG Standards

Seal Quench is also available upon request.

SP-LR series. Sanitary self priming liquid ring pump. Mechanical seal

Balanced Stub Shaft Design

All SP-LR Sanitary Self-Priming Liquid Ring Pumps are fitted with a balanced stub shaft design with features a conical shaft end without key way and dry mount EHEDG / FDA compliant O-Rings. Grub screw attachment to the motor shaft enables easy assembly and disassembly during maintenance procedures.

Optional Heating Jacket

All models can be fitted with an optional heating jacket to maintain fluid temperature whilst being pump and is generally used when transferring for higher viscosity edible oils.

Performance curves

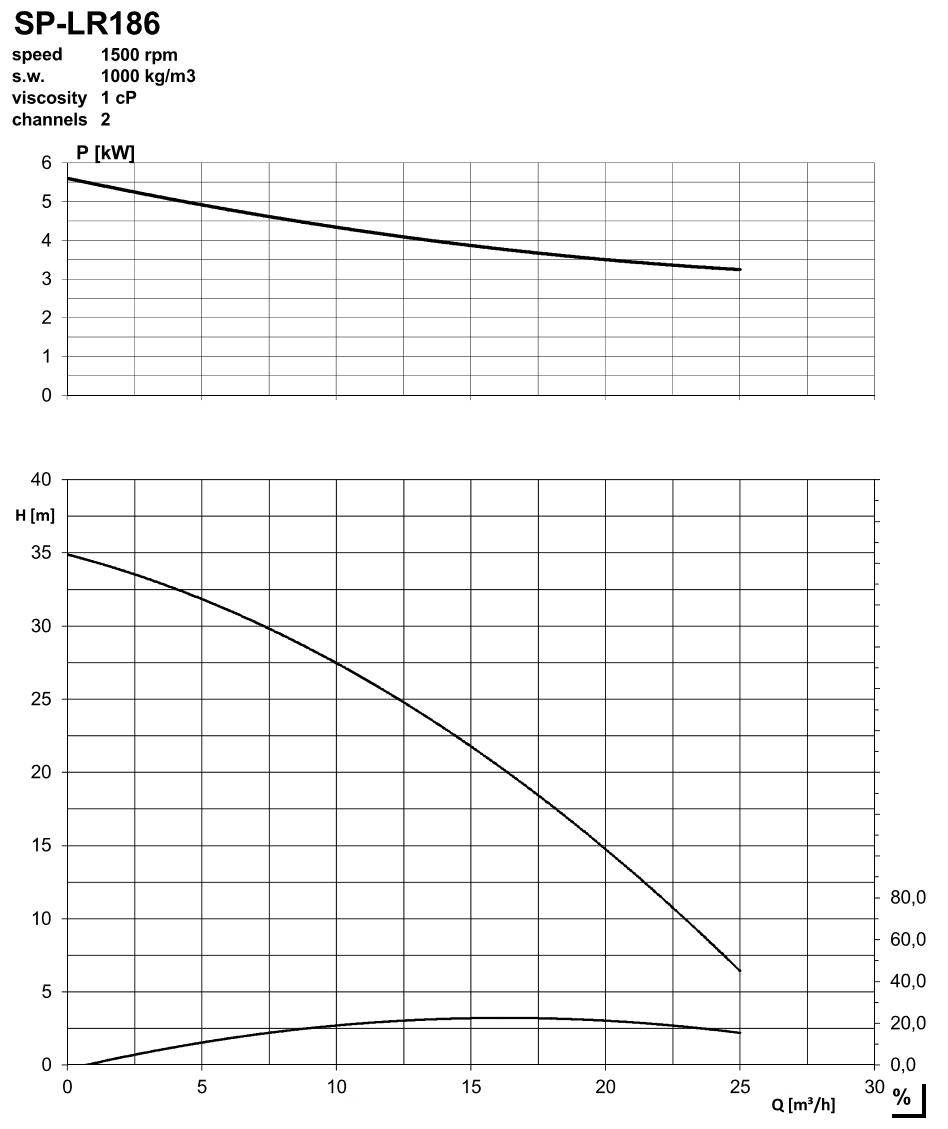

SP-LR-186 Dual Channel Performance Curve

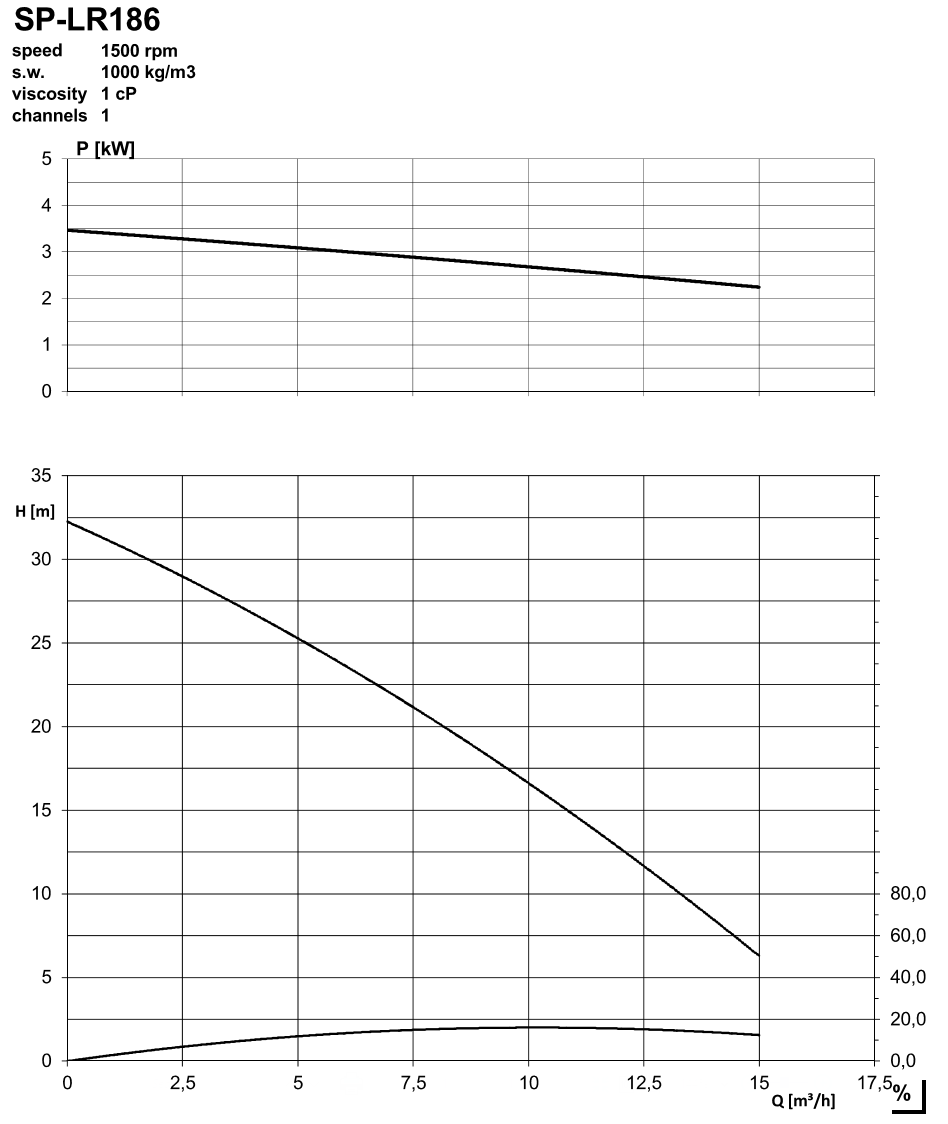

SP-LR-186 Single Channel Performance Curve

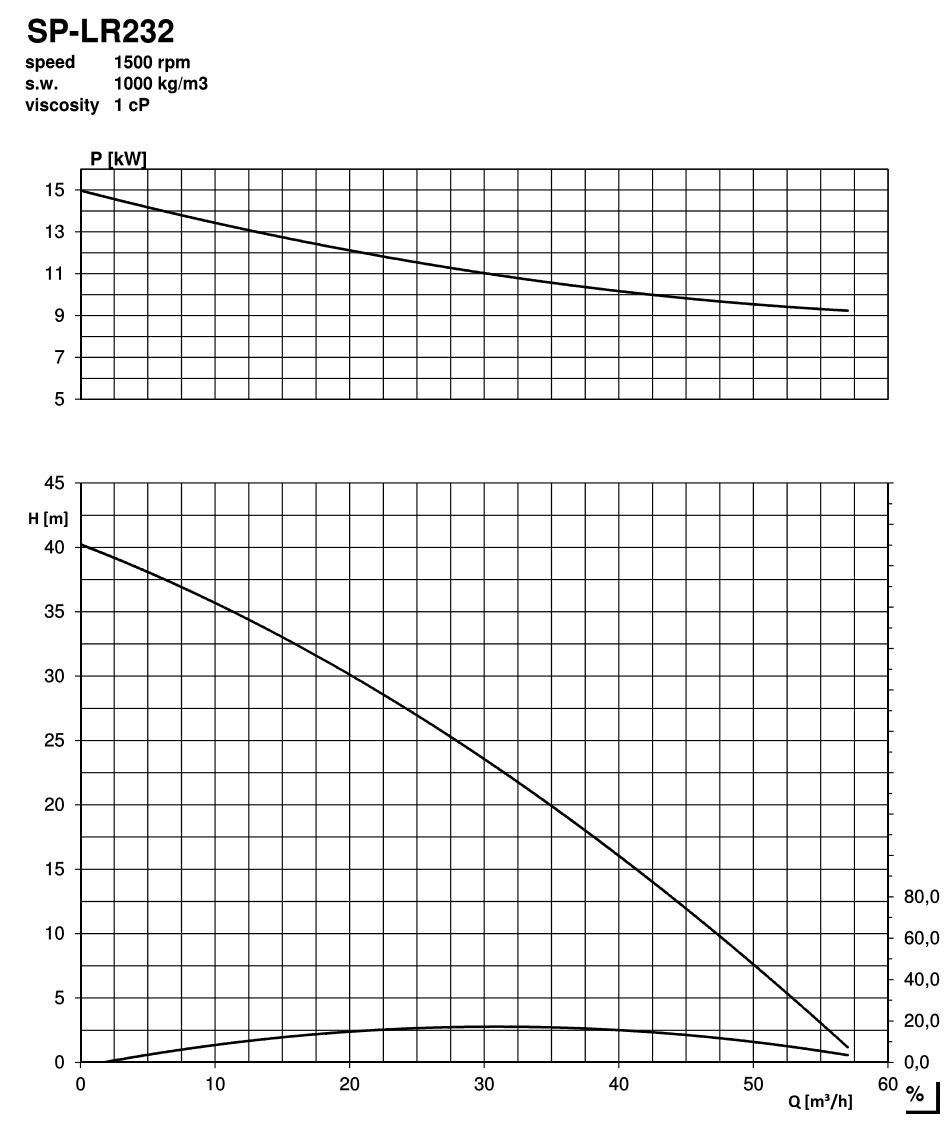

SP-LR-232 Dual Channel Performance Curve

Overview
Technical data
Mechanical seal

Performance curves
