Industrial high-performance centrifugal pumps – CTX I series

Industrial high-performance centrifugal pumps – CTX I series

CTX centrifugal pumps are reliable and efficient pumps designed to minimize downtime and ensure excellent performance. They provide long-lasting and trouble-free operation, are easy to clean, and suitable for pumping liquids with solid inclusions. They are equipped with a high-efficiency, robustly constructed open impeller. Designed and optimized to ensure the highest pump energy efficiency and the ability to pump in a wide range of operating conditions.

Thanks to their modular design, these centrifugal pumps can be adapted to various applications and installation conditions – they are available in 3 versions: industrial (CTX I), hygienic (CTX H) and self-priming (CTX S).

CTX I centrifugal pumps can be used, among others, in the chemical, petrochemical and machine production industries.

Max. capacity: 130 m³/h (2166 l/min)
Max. discharge pressure: 16 bar
Max. temperature: 120 °C
Pump materialss: AISI 316L stainless steel
Certificates: ATEX, FDA, EN 10204

Designed for the applications requiring high efficiency
Available in Hygienic & Industrial execution
Single or double mechanical seal
Low noise & low vibration
The Impeller can be adjusted (trimmed)to work with specific parameters
Robust construction and easy maintenance thus less downtime
Modular design concept
Low NPSHr

BROCHURE MANUAL

CTX I centrifugal pumps can be used, among others, in the chemical, petrochemical and machine production industries.

Technical data

Pump capacity:	130 m³/h (2166 l/min)
Max. discharge pressure:	16 bar
Temperature:	120 °C
Viscosity:	150 mPa·s
Casing material:	AISI316L stainless steel, glass-blasted to Ra<3.2 μm
Impeller material:	AISI316L stainless steel, glass-blasted to Ra<3.2 μm
Mechanical seal:	single: SiC/Graphite (standard) or SiC/SiC, FDA certified double:, SiC/Graphite (standard) or SiC/SiC, FDA certified
O-rings:	EPDM, FKM, NBR
Electric motor:	IEC standard, 3-phase, 2-/4-pole, IP55

Connection dimension

Model	BSPT male thread		EN1092-1 flange (std.)		ANSI 150 flange
Model	Inlet	Outlet	Inlet	Outlet	Inlet	Outlet
CTX 40-165	1.5”	1.25”	DN40	DN32	1.5”	1.25”
CTX 50-145	2”	1.5”	DN50	DN40	2”	1.5”
CTX 50-200	2”	1.5”	DN50	DN40	2”	1.5”
CTX 65-175	2.5”	2”	DN65	DN50	2.5”	2”
CTX 65-230	2.5”	2”	DN65	DN50	2.5”	2”
CTX 65-240	2.5”	1.5”	DN65	DN40	2.5”	1.5”
CTX 80-205	3”	2”	DN80	DN50	3”	2”
CTX 80-212	3”	2.5”	DN80	DN65	3”	2.5”
CTX 80-260	3”	2.5”	DN80	DN65	3”	2.5”
CTX 100-230	4”	3”	DN100	DN80	4”	3”

Typical applications

Industries:	Chemical, mining, oil and gas, packaging, printing, automotive, machinery, wastewater treatment, production plants.
Application examples:	Oils, fuels, solvents, concentrated or diluted acids and bases in explosion-proof and safe areas, mild and aggressive chemicals, hot and cold liquids, suspensions and emulsions, cleaning agents, sewage, coolants and heating agents, filling and emptying of storage tanks, reservoirs, containers, filters, wells, supplying process equipment, dosing systems, dosing units, test stands.

Key benefits

	1. Casing available in Ra<0.5 Wetted and external parts glazed to Ra<3.2 μm.
	2. Variety of connections Flange connections according to EN 1092-1 type 11, ANSI 150 Lbs. Other connection types on request.
	3. Hygienic mechanical seal system Single or double mechanical seal.
	4. Optimized casing and impeller design The shape of the pump chamber and impeller are the result of advanced multidimensional analysis and numerous performance tests. Both of these elements have been designed and optimized to ensure the highest energy efficiency of the pump.

Operation principle

The two main parts of a centrifugal pump are the impeller with vanes and the pump casing. Liquid enters the pump through the suction port near the center of the rapidly rotating impeller. The liquid on the suction side moves along the impeller axis and, due to the centrifugal force generated by the vanes, is thrown radially outwards into a chamber in the casing. The casing gradually expands in a spiral towards the discharge nozzle, which reduces the liquid velocity and thus increases the pressure (diffuser effect). At the same time, as the liquid is thrown radially outwards by the impeller towards the discharge port due to centrifugal force, the pressure at the center of the impeller drops, enhancing the suction effect of the liquid into the pump, which enables a continuous liquid transfer process.

Want to know more? Check out our compendium of knowledge about centrifugal pumps!

Construction

Modular design The modular design of the CTX series centrifugal pumps provides greater flexibility in adapting to different operating conditions. This also means greater pump versatility and quick and easy upgradeability. The interchangeability of parts between different pump types and sizes makes pump operation and maintenance cheaper and easier. Compared to their counterparts in the CTI and CTH range – Tapflo CTX-I and CTX-H centrifugal pumps can achieve higher pressures and are available in larger sizes, providing a more versatile flow range.
	Open impeller CTX series pumps have an open impeller with a robust design, high efficiency and low Net Positive Suction Head required (NPSHr). CTX series pumps with an open impeller are both easy to clean and suitable for pumping liquids containing solids. Adapting the performance of CTX pumps to specific operating points or ranges can be done by machining impellers at constant speeds or by adjusting the pump speed at constant impeller diameters.
Hygienic mechanical seal arrangement
Single mechanical seal The mechanical seal spring is not in contact with the pumped liquid, making the internal pump chamber fully washable.
Double mechanical seal Used when the liquid and its vapors pose a hazard to the operator or the environment and must be contained, when aggressive media are used at high pressures or temperatures, and for many polymerizing and crystallizing media.
	Variety of connections Flange connections according to EN 1092-1 type 11, ANSI 150 Lbs or BSPT thread.
Casings available in Ra<0.5 μm Wetted and external parts glass blasted to Ra<3.2 μm

Special versions

Self-Priming Centrifugal Pumps | CTX S series

Thanks to the self-priming capability, the CTX-S series pump can be used in situations where it is necessary to lift liquid from a level below the pump.

Since the standard CTX pump is not able to create a vacuum, with a simple modification it is possible to enable the pump to lift liquid from a height of up to 5 m. After the initial priming, the return pipe will recirculate liquid from the discharge side of the pump to ensure the liquid ring is maintained inside the pump.

The self-priming option is easy to adapt to existing pumps by replacing the front cover and adding a vent screw.

Tapflo CTX S industrial self-priming centrifugal pumps

Hygienic High-Performance Centrifugal Pumps | CTX H series

Designed for hygienic applications, including in the food, dairy, chemical and pharmaceutical industries.

Equipped with hygienic connections compliant with DIN 11851 as standard and mechanical seals and elastomers with FDA and EC 1935 approval. Wetted parts are electro-polished to Ra <0.8 μm as standard (Ra <0.5 μm on request) and external surfaces are glass-bead blasted to Ra <3.2 μm.

Want to know more? Check out the CTX H hygienic centrifugal pumps product page.

Accessories

Industrial flanged connections CTX I industrial pumps are equipped with connections compliant with EN 1092-1 type11, ANSI 150 Lbs. Other connection types are available on request.
Adjustable feet This solution allows for easy cleaning of the surface under the pump. It can also be useful if the pump needs to be moved to a different location.
Mounting brackets The pump unit can be mounted on a base, which can be permanently fixed to the foundation.
Built-in frequency converter The simplest and most flexible way to change the pump’s operating parameters. The inverter also provides overload protection and acts as a soft starter.
Inducer The inducer increases the inlet pressure, thus lowering the pump’s NPSHr. This option is very easy to install even on existing pumps – to install it, simply screw the inducer onto the impeller.
Centrifugal pump trolleys Do you want to use one pump in multiple locations in your facility? Do you have technological processes scattered throughout the factory? We offer mobile solutions adapted to most Tapflo pumps. Thanks to the possibility of free transport of the pump, the use of the device is almost unlimited. Pump trolleys are available in several sizes, as well as in hygienic and industrial versions: Features and benefits: industrial or hygienic design, 3 sizes adapted to the pump used, compact and durable stainless steel construction, ATEX zone compliant. Want to know more? Check out the Tapflo pump trolley product page.

Performance curves

Pump capacity:	130 m³/h (2166 l/min)
Max. discharge pressure:	16 bar
Temperature:	120 °C
Viscosity:	150 mPa·s
Casing material:	AISI316L stainless steel, glass-blasted to Ra<3.2 μm
Impeller material:	AISI316L stainless steel, glass-blasted to Ra<3.2 μm
Mechanical seal:	single: SiC/Graphite (standard) or SiC/SiC, FDA certified double:, SiC/Graphite (standard) or SiC/SiC, FDA certified
O-rings:	EPDM, FKM, NBR
Electric motor:	IEC standard, 3-phase, 2-/4-pole, IP55

Connection dimension

Model	BSPT male thread		EN1092-1 flange (std.)		ANSI 150 flange
Model	Inlet	Outlet	Inlet	Outlet	Inlet	Outlet
CTX 40-165	1.5”	1.25”	DN40	DN32	1.5”	1.25”
CTX 50-145	2”	1.5”	DN50	DN40	2”	1.5”
CTX 50-200	2”	1.5”	DN50	DN40	2”	1.5”
CTX 65-175	2.5”	2”	DN65	DN50	2.5”	2”
CTX 65-230	2.5”	2”	DN65	DN50	2.5”	2”
CTX 65-240	2.5”	1.5”	DN65	DN40	2.5”	1.5”
CTX 80-205	3”	2”	DN80	DN50	3”	2”
CTX 80-212	3”	2.5”	DN80	DN65	3”	2.5”
CTX 80-260	3”	2.5”	DN80	DN65	3”	2.5”
CTX 100-230	4”	3”	DN100	DN80	4”	3”

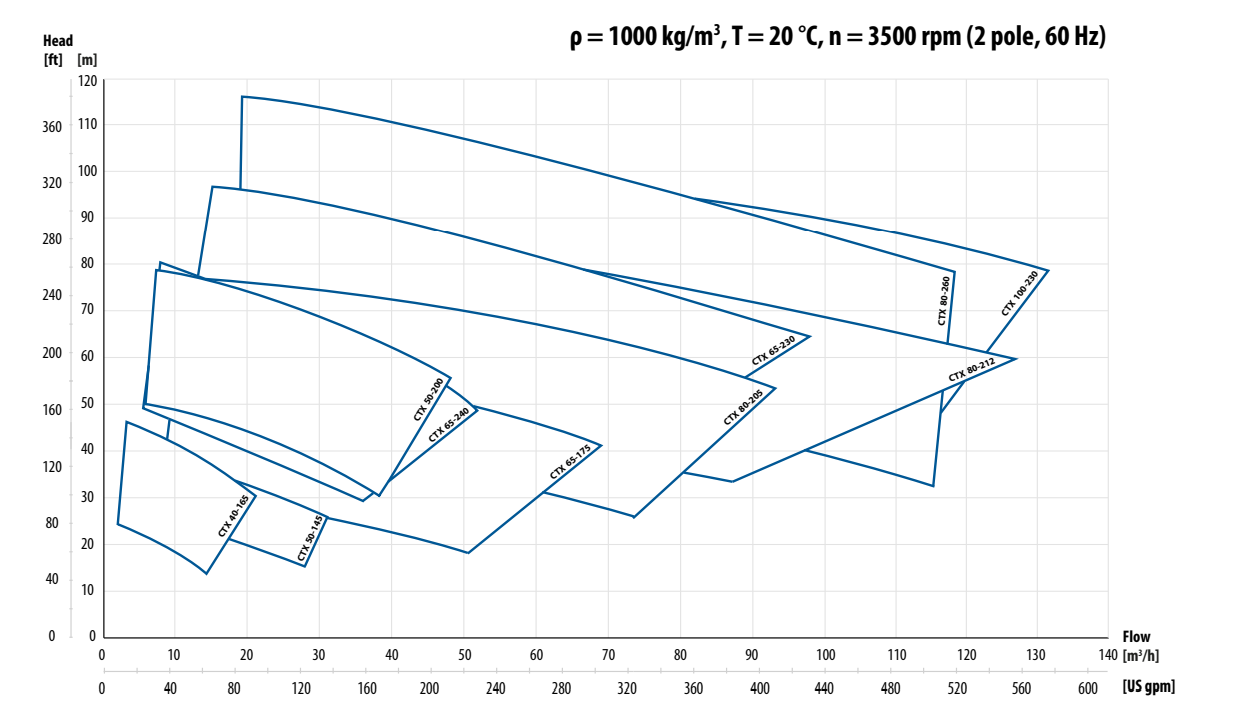

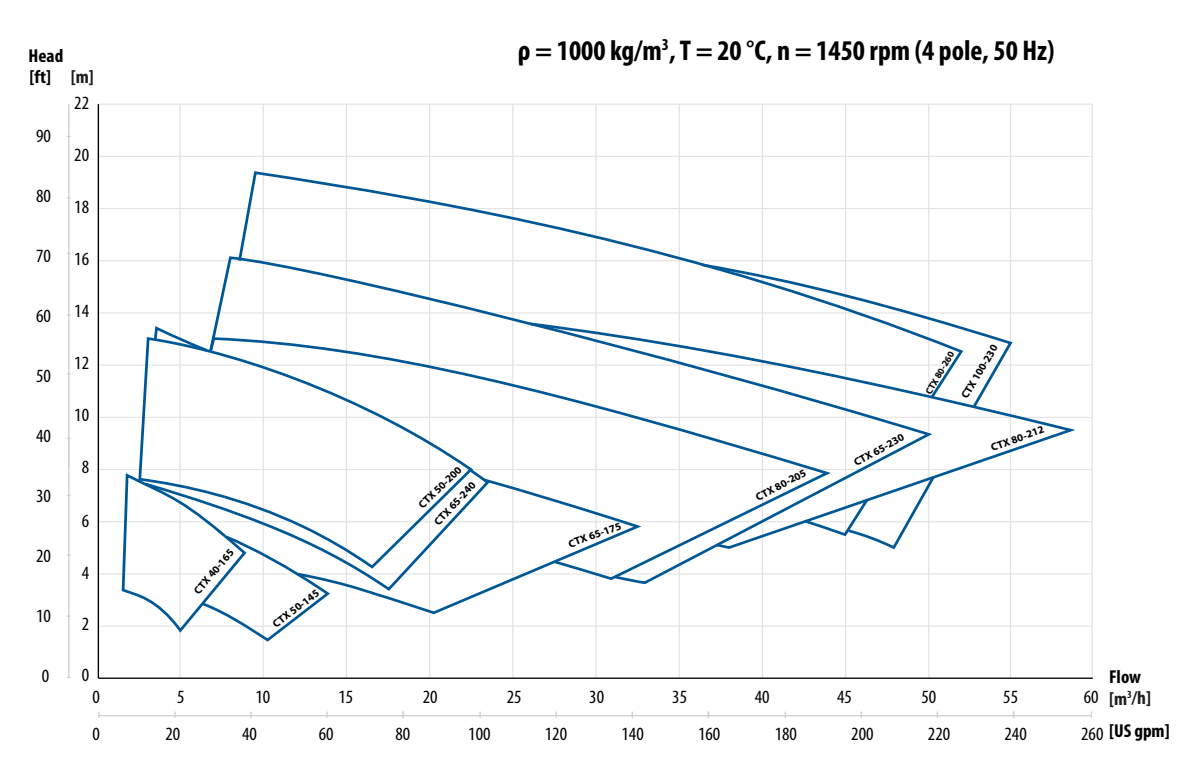

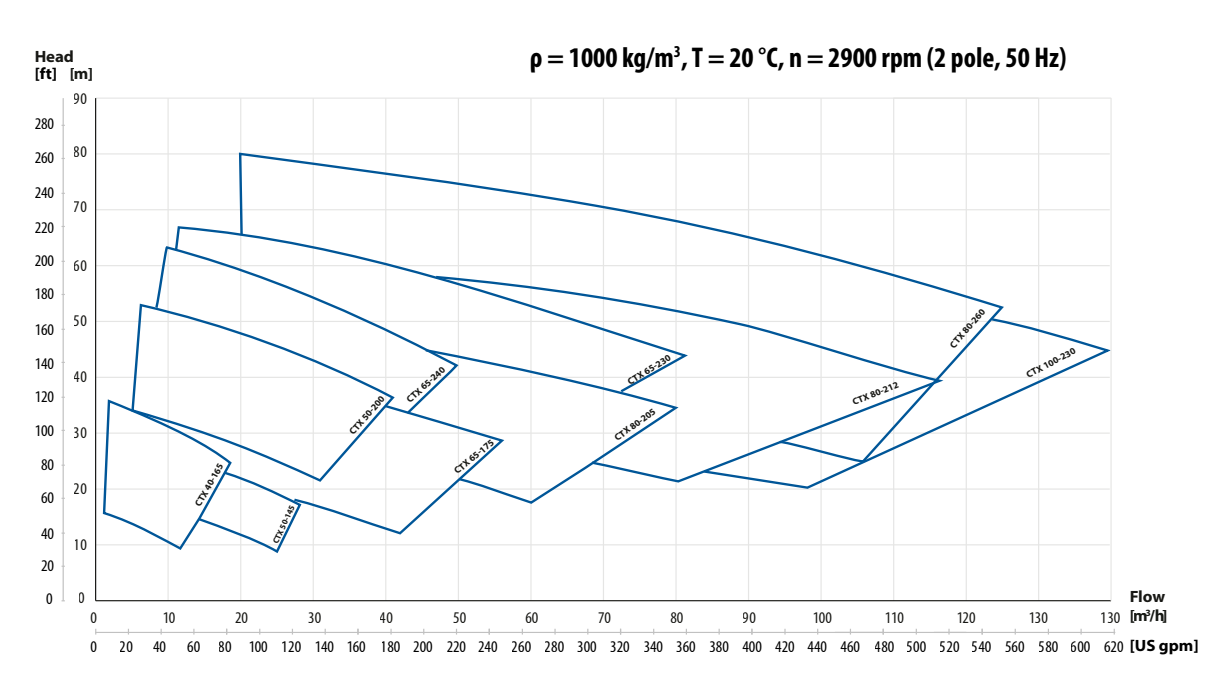

Performance curves
