Hygienic diaphragm pump for gentle mushroom transport

29/01/2025

The application concerns a hygienic process within the food industry, where gentle handling of delicate, large-sized solid products is required. The focus of the system is on maintaining product integrity during transport while ensuring high hygienic standards throughout the process.

CUSTOMER PROBLEMS AND CHALLENGES

The main challenge was the gentle transfer of whole mushrooms without significant damage to their structure during pumping. The process involved handling large solid particles, reaching up to 70–80 mm in diameter.

The application required:

avoiding crushing or deformation of soft solids
maintaining stable pump performance across varying particle sizes
preventing clogging or blockage
hygienic handling of food products

TAPFLO ACTIONS

APPLIED DEVICES:

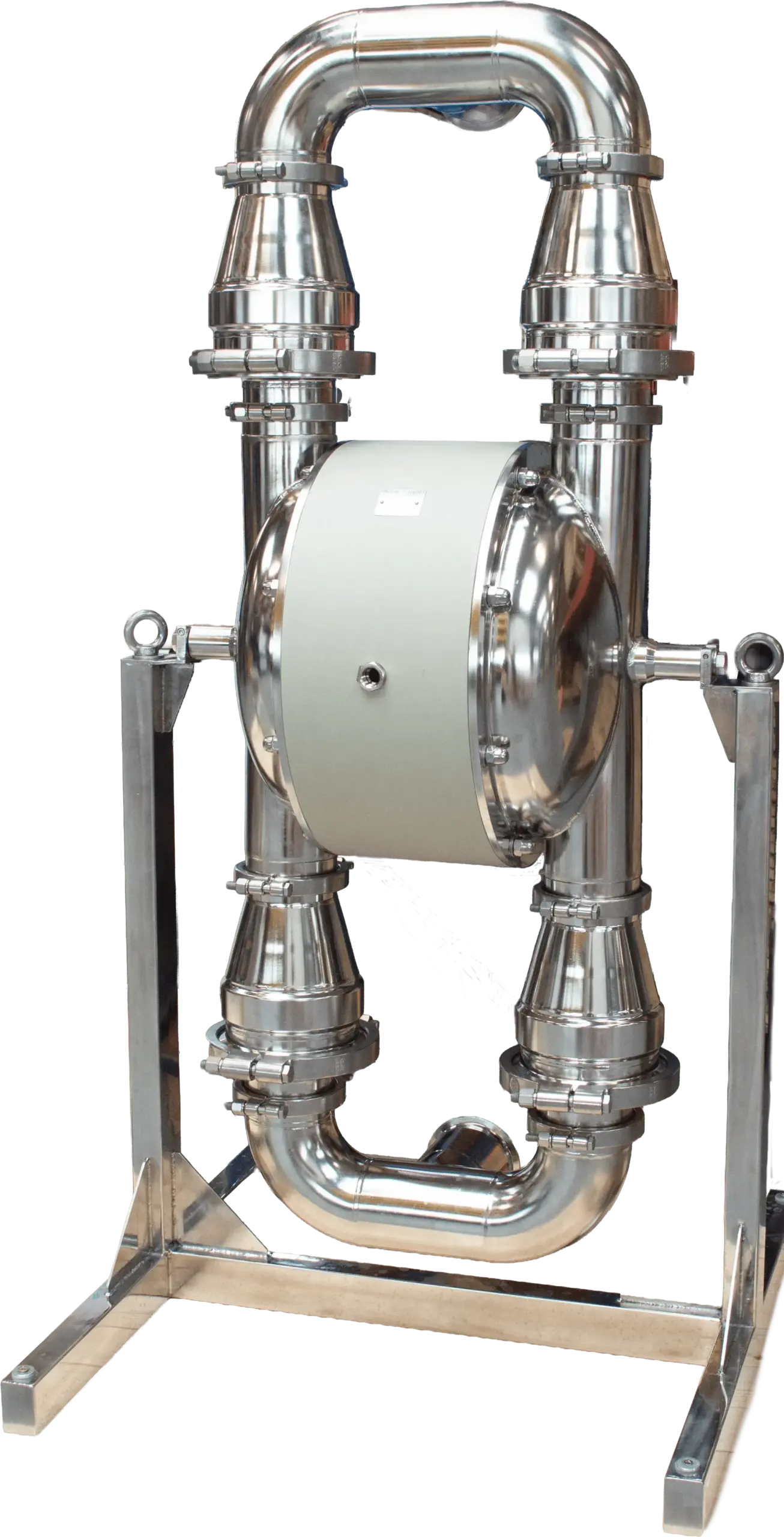

Hygienic diaphragm pump T825 ST

To fulfill the process requirements, Tapflo proposed a hygienic air-operated diaphragm pump T825 ST equipped with flap valve design that enables gentle handling of large, soft solids compared to standard ball valve configurations. The low-shear pumping principle of diaphragm pumps helps preserve the structure of delicate solids such as mushrooms.

The hygienic design with smooth product-contact surfaces facilitates cleaning and reduces product residues.Tapflo flap valves provide improved hygienic features compared to traditional flap valve designs. They offer a good balance between solids handling, performance and hygiene.

The largest T825 air-operated hygienic pump, equipped with flap valves, allows pumping particles up to approximately 100 mm, depending on their shape and hardness. As a standard, the T825 pump is a 3” pump but when utilizing flap valves the pumps internal clearances are critical therefore the pump size was increase to 4” in the flap valve design.

RESULT

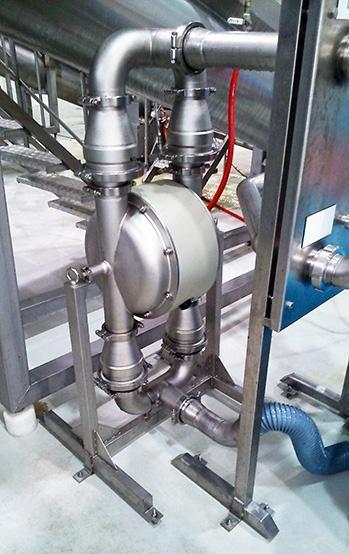

The solution was tested at the customer’s site under real operating conditions. The results confirmed that 95% of the mushrooms remain undamaged after passing through the pump. The pump’s performance is excellent for mushrooms with a diameter of approximately 70-80 mm as well as smaller ones. Smaller particles generally allow for more stable and efficient pump operation.
